Shop ZOELLER

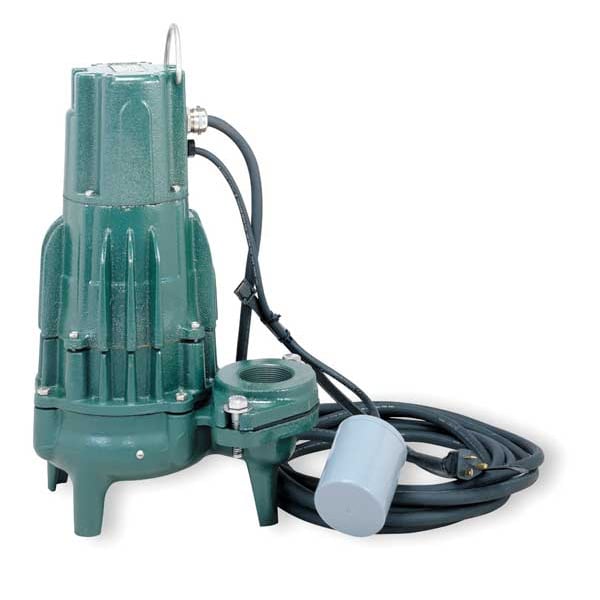

Waste-Mate 2 HP 2" Auto Submersible Sewage Pump 230V Tether

  • Mfr # 295-0040

  • Zoro # G1425995

product price:  $2,117.99
/ea
Free Shipping & Returns

Key Features

HP
2
Phase - Pumps
1
Switch Actuation
Tether Float
Body Material
Cast Iron
Base Material
Cast Iron
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
295-0040
Zoro #
G1425995
UPC #
053514096373
Country of Origin
United States

Dimensions

Max. Diameter Solids
2 in
Cord Length
20 ft
Diameter
12-7/8"
Manufacturers Warranty Length
1 yr
Height
19-5/16"
Cord Length - Pumps
20 ft.
Max. Dia. Solids
2"
Min. Sump Pit Dia.
24 in
Body Dia.
12 7/8 in
Overall Height
19 3/8 in
Discharge Dia.
2 in
Sump Pit Diameter - Minimum
24 in
Discharge Diameter
2 in
Solids Diameter - Maximum
2 in
Body Diameter
12 7/8 in
Width at Widest Point
12 7/8 in

Details

HP
2
Phase - Pumps
1
Switch Actuation
Tether Float
Body Material
Cast Iron
Base Material
Cast Iron
Flow Rate @ 10 Ft. of Head
199 gpm
Max. Head
75 ft
Impeller Material
Cast Iron
Impeller Material - Pumps
Cast Iron
Voltage - Pumps
240VAC
Item - Sewage Pumps
Submersible Sewage Pump
GPM of Water @ 50 Ft. of Head
89
Max. Head - Pumps
75 ft.
Amps
17.10 A
Switch Type
Tether
Shaft Seal Material - Pumps
Carbon, Ceramic
GPM of Water @ 5 Ft. of Head
214
GPM of Water @ 20 Ft. of Head
168
Bearing Type
Ball
Phase
Single
Item
Sewage Ejector Pump
Input Phase AC
1
GPM of Water @ 40 Ft. of Head
115
Max. Liquid Temp.
104 Degrees F
Motor RPM
3450
Agency Compliance
CSA Certified, UL Listed
GPM of Water @ 70 Ft. of Head
23
GPM of Water @ 10 Ft. of Head
199
GPM of Water @ 25 Ft. of Head
154
Switch Type - Pumps
Tether
GPM of Water @ 60 Ft. of Head
59
Pump Type
Automatic
GPM of Water @ 30 Ft. of Head
140
Discharge NPT
2"
Motor Type
Hermetically-Sealed, Oil-Filled
GPM of Water @ 15 Ft. of Head
184
Pump Body Material
Cast Iron
Housing Material
Cast iron
Amps - Pumps
17.10
Shaft Seal
Carbon/Ceramic
Voltage
230
Thermal Protection
Yes
Off Point
5 in
Flow Rate @ 20 Ft. of Head
173 gpm
Flow Rate @ 60 Ft. of Head
66 gpm
Discharge Gender
Female
Discharge
2 in FNPT
Duty Cycle
Continuous
On Point
14 3/4 in
Flow Rate @ 15 Ft. of Head
186 gpm
Switch Electrical Connection
Piggyback
Discharge Standard
NPT
RPM
3,450 RPM
Flow Rate @ 40 Ft. of Head
124 gpm
Rated Voltage
230V AC
Standards
CSA Certified, UL Listed
Type
Automatic
Volute Material
Cast Iron
Power Source
Corded Electric
Current
17.10 A
Requires Control Panel
No Control Panel Required
Rotation Speed - Maximum
3,450 RPM
Horsepower
2 hp
Shaft Seal Type
Single Mechanical
Liquid Temperature - Maximum
104 Degrees F
For Media Type
Sewage Water
Feet of Head - Maximum
75 ft
Flow Rate @ 10 ft of Head
199 gpm
Shaft Seal Material
Carbon/Ceramic
Frequency
60 Hz
Motor Housing Material
Cast Iron
Discharge Orientation
Vertical
Hazardous Location Class
Not Rated
Series
Model 295
Power Source - TS Only
Corded Electric

Description

Sewage Ejector Pump, HP 2, Rated Voltage 230V AC, Phase - Pumps 1, Amps 17.10 A, Motor Type Hermetically-Sealed, Oil-Filled, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Carbon, Ceramic, Switch Actuation Tether Float, Switch Electrical Connection Piggyback, On Point 14 3/4 in, Off Point 5 in, Flow Rate @ 10 Ft. of Head 199 gpm, Flow Rate @ 15 Ft. of Head 186 gpm, Flow Rate @ 20 Ft. of Head 173 gpm, Flow Rate @ 40 Ft. of Head 124 gpm
