Shop ZOELLER

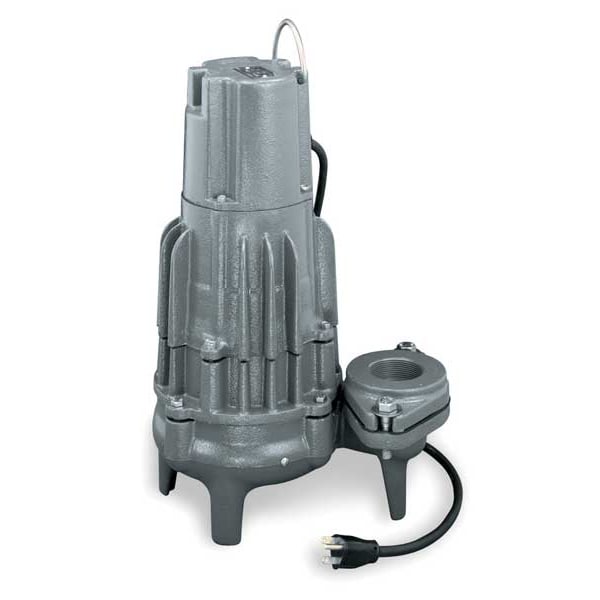

Waste-Mate 2 HP 2" Manual Submersible Sewage Pump 230V

  • Mfr # 295-0004
  • Zoro # G2347195
product price:
$
1,737.99
/ea
Additional $155.00 delivery surcharge applies per item.
See details

Key Features

HP
2
Phase - Pumps
1
Switch Actuation
No Switch Included
Body Material
Cast Iron
Base Material
Cast Iron
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
295-0004
Zoro #
G2347195
UPC #
053514093778
Country of Origin
United States
HP
2
Phase - Pumps
1
Switch Actuation
No Switch Included
Body Material
Cast Iron
Base Material
Cast Iron
Flow Rate @ 10 Ft. of Head
199 gpm
Max. Head
75 ft
Impeller Material
Cast Iron
GPM of Water @ 50 Ft. of Head
89
Max. Head - Pumps
75 ft.
Item
Sewage Ejector Pump
Thermal Protection
Yes
Discharge NPT
2"
Agency Compliance
CSA Certified, UL Listed
Pump Type
Manual
Input Phase AC
1
Bearing Type
Ball
Motor Type
Hermetically-Sealed, Oil-Filled
GPM of Water @ 10 Ft. of Head
199
GPM of Water @ 15 Ft. of Head
184
Switch Type - Pumps
No Switch Included
Shaft Seal Material - Pumps
Carbon, Ceramic
Amps
16.60 A
Max. Liquid Temp.
130 Degrees F
GPM of Water @ 5 Ft. of Head
214
Switch Type
None
GPM of Water @ 30 Ft. of Head
140
Shaft Seal
Carbon/Ceramic
GPM of Water @ 25 Ft. of Head
154
Amps - Pumps
16.60
Impeller Material - Pumps
Cast Iron
GPM of Water @ 70 Ft. of Head
23
Motor RPM
3450
GPM of Water @ 20 Ft. of Head
168
Pump Body Material
Cast Iron
Phase
Single
GPM of Water @ 40 Ft. of Head
115
Voltage - Pumps
240VAC
Housing Material
Cast iron
Voltage
230
GPM of Water @ 60 Ft. of Head
59
Item - Sewage Pumps
Submersible Sewage Pump
RPM
3,450 RPM
Discharge
2 in FNPT
Rated Voltage
230V AC
Flow Rate @ 15 Ft. of Head
186 gpm
Discharge Standard
NPT
Flow Rate @ 20 Ft. of Head
173 gpm
Discharge Gender
Female
Flow Rate @ 60 Ft. of Head
66 gpm
Flow Rate @ 40 Ft. of Head
124 gpm
Duty Cycle
Continuous
Switch Electrical Connection
No Switch Included
On Point
14 3/4 in
Off Point
5 in
Standards
CSA Certified, UL Listed
Type
Manual
Requires Control Panel
No Control Panel Required
Flow Rate @ 10 ft of Head
199 gpm
Shaft Seal Material
Carbon/Ceramic
Motor Housing Material
Cast Iron
Feet of Head - Maximum
75 ft
Current
16.60 A
Horsepower
2 hp
Power Source
Corded Electric
Volute Material
Cast Iron
Hazardous Location Class
Not Rated
Liquid Temperature - Maximum
130 Degrees F
Shaft Seal Type
Single Mechanical
Frequency
60 Hz
Series
Model 295
For Media Type
Sewage Water
Rotation Speed - Maximum
3,450 RPM
Discharge Orientation
Vertical
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

When it comes to pumping out waste water, the ZOELLER E295 Waste-Mate 2 HP 2" Manual Submersible Sewage Pump is the ideal solution. This pump is CSA certified and UL listed. The submersible sewage pump has a flow rate of 199 gpm at 10 ft. of head pressure. It can handle liquid temperatures up to 130 degrees F and has a discharge size of 2 in FNPT. The overall height of this sewage pump is 21 3/16 in., while its on point is 14 3/4 in. Cast iron makes up the body, base, and body material of this manual submersible sewage pump. When you need a reliable sewer ejector pump that can handle tough conditions, consider investing in the ZOELLER E295 Waste-Mate 2 HP 2" Manual Submersible Sewage Pump.
