  9. Waste-Mate 4/10 HP 2" Auto Submersible Sewage Pump 115V Vertical

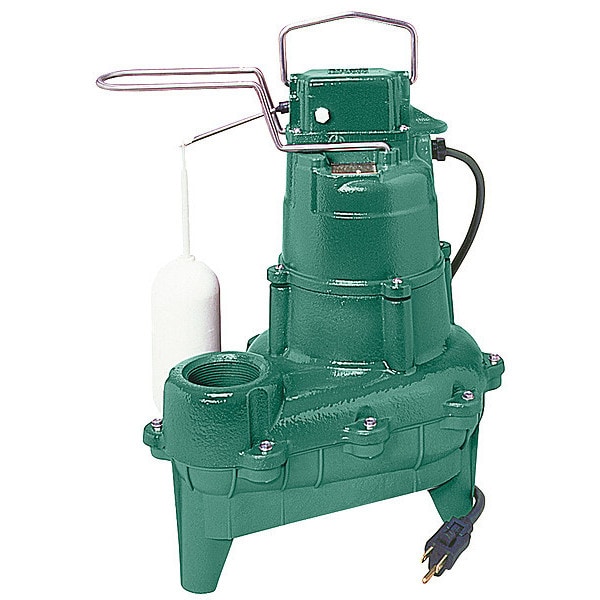

Zoeller Waste-Mate 4/10 HP 2" Auto Submersible Sewage Pump 115V Vertical 264-0001 - main

Waste-Mate 4/10 HP 2" Auto Submersible Sewage Pump 115V Vertical

  • Mfr # 264-0001

  • Zoro # G2973031

product price: $479.99
/ea
Free Shipping & Returns

Key Features

HP
4/10
Phase - Pumps
1
Switch Actuation
Vertical Float
Body Material
Cast Iron
Base Material
Polypropylene
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
264-0001
Zoro #
G2973031
UPC #
053514093396
Country of Origin
United States

Dimensions

Max. Diameter Solids
2 in
Cord Length - Pumps
10 ft.
Manufacturers Warranty Length
3 yr
Diameter
11-23/64"
Height
14-3/4"
Cord Length
9 ft
Max. Dia. Solids
2"
Min. Sump Pit Dia.
18 in
Overall Height
14 3/4 in
Body Dia.
11 23/64 in
Discharge Dia.
2 in
Sump Pit Diameter - Minimum
18 in
Discharge Diameter
2 in
Width at Widest Point
13 1/8 in
Body Diameter
13 1/8 in
Solids Diameter - Maximum
2 in

Details

HP
4/10
Phase - Pumps
1
Switch Actuation
Vertical Float
Body Material
Cast Iron
Base Material
Polypropylene
Flow Rate @ 10 Ft. of Head
60 gpm
Max. Head
18 ft
Impeller Material
Thermoplastic
Switch Type - Pumps
Vertical
Item
Sewage Ejector Pump
Motor Type
Hermetically-Sealed, Oil-Filled, Permanent Split Capacitor
Phase
Single
Voltage
115
Motor RPM
1725
Item - Sewage Pumps
Submersible Sewage Pump
Impeller Material - Pumps
Polypropylene
GPM of Water @ 10 Ft. of Head
60
Pump Type
Automatic
Shaft Seal
Carbon/Ceramic
Max. Head - Pumps
18 ft.
Amps
9.40 A
Switch Type
Vertical
Shaft Seal Material - Pumps
Carbon, Ceramic
Input Phase AC
1
GPM of Water @ 15 Ft. of Head
22
Bearing Type
Sleeve
Max. Liquid Temp.
130 Degrees F
Housing Material
Cast iron
Pump Body Material
Cast Iron
Amps - Pumps
9.40
Voltage - Pumps
120VAC
Agency Compliance
CSA Certified, UL Listed
Discharge NPT
2"
Thermal Protection
Yes
GPM of Water @ 5 Ft. of Head
90
On Point
12 1/2 in
Duty Cycle
Continuous
Discharge Gender
Female
Off Point
4 1/2 in
Rated Voltage
115V AC
Switch Electrical Connection
Integral
Flow Rate @ 15 Ft. of Head
23 gpm
Discharge
2 in FNPT
RPM
1,725 RPM
Discharge Standard
NPT
Standards
CSA Certified, UL Listed
Type
Automatic
Frequency
60 Hz
Volute Material
Cast Iron
Feet of Head - Maximum
18 ft
Current
9.40 A
Shaft Seal Type
Single Mechanical
Liquid Temperature - Maximum
130 Degrees F
Discharge Orientation
Vertical
Motor Housing Material
Cast Iron
Shaft Seal Material
Carbon/Ceramic
Flow Rate @ 10 ft of Head
60 gpm
Series
Model 264
Rotation Speed - Maximum
1,725 RPM
Requires Control Panel
No Control Panel Required
For Media Type
Sewage Water
Horsepower
2/5 hp
Hazardous Location Class
Not Rated
Power Source
Corded Electric

Description

Sewage Ejector Pump, HP 4/10, Rated Voltage 115V AC, Phase - Pumps 1, Amps 9.40 A, Motor Type Hermetically-Sealed, Oil-Filled, Permanent Split Capacitor, Body Material Cast Iron, Impeller Material Thermoplastic, Shaft Seal Material - Pumps Carbon, Ceramic, Switch Actuation Vertical Float, Switch Electrical Connection Integral, On Point 12 1/2 in, Off Point 4 1/2 in, Flow Rate @ 10 Ft. of Head 60 gpm, Flow Rate @ 15 Ft. of Head 23 gpm, Max. Diameter Solids 2 in, Min. Sump Pit Dia. 18 in
