Shop ZORO SELECT

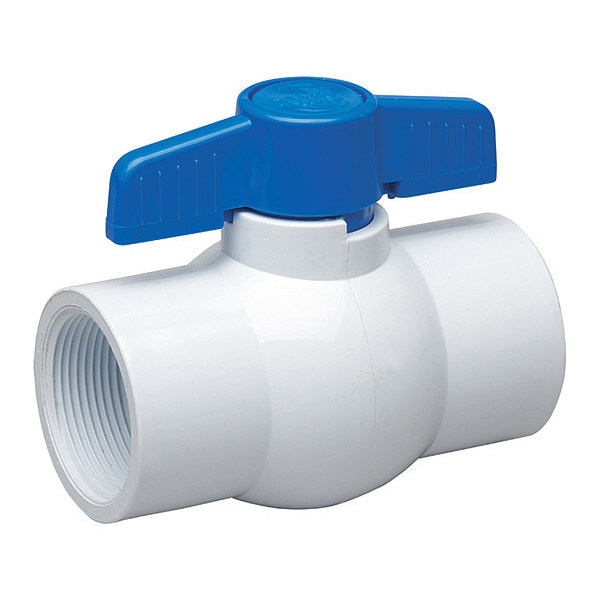

1-1/2" FNPT PVC Ball Valve Inline

  • Mfr # 107-137-NP

  • Zoro # G2570662

product price:  $6.55
/ea

Key Features

Ball Material
PVC
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
One-Piece
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
107-137-NP
Zoro #
G2570662
UPC #
-
Country of Origin
China

Dimensions

Pipe Size
1 1/2 in
Overall Length
4.8 in
Connection Size - Side 1
1 1/2 in
Nominal Valve Size
1 1/2 in
Connection Size - Side 2
1 1/2 in

Details

Ball Material
PVC
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
One-Piece
For Media
Water
Connection Type
FNPT x FNPT
Item
Ball Valve
Handle Type
Tee
Body Material
PVC
Stem Material
PVC
Max. Pressure
150 PSI CWP
Seat Material
EPDM
Hose I.D.
1 1/2 in
Stem Type
Blowout Resistant
Handle Material
ABS
Ball Valve Product Group
Manual
Temp. Range
34 Degrees to 140 Degrees F
Seal Material
EPDM
Type
One Piece
Connection Gender - Side 2
Female
Connection Gender - Side 1
Female
3-A Standard Compliance
Not Rated
Coefficient of Volume (Cv)
125
Maximum Pressure - Combustible Gas
Not Rated
Vacuum Service Rating
Not Rated
Pipe Schedule Compatibility
Schedule 40, Schedule 80
Color - Valve Handle
Blue
Connection Type - Side 1
IPS
Vented Ball Valve
Non-Vented
Connection Type - Side 2
IPS
Operating Temperature - Minimum
32 Degrees F
Handle - Locking
Non-Locking
Maximum Pressure - Steam
Not Rated
Operating Temperature - Maximum
113 Degrees F
Valve Series
6700WT
Maximum Pressure - Operating
150 psi
Valve Body Style
Straight
Manufacturer Warranty
1 yr
Valve Construction
One-Piece

Description

Manual Two-Way Ball Valve, Body Material PVC, For Media Water, Valve Construction One-Piece, Nominal Valve Size 1 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 150 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Rated, Ball Material PVC, Ball Port Style Full Port, Handle - Locking Non-Locking, Handle Type Tee

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
