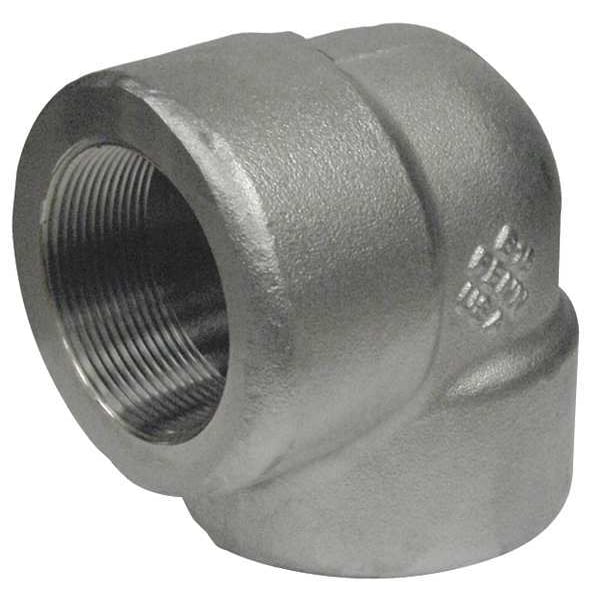

1" FNPT 304/304L SS 90 Degree Elbow
Mfr # 2000300112
Zoro # G7982773
Key Features
Specifications
Product Information
Dimensions
Description
The ZORO SELECT 2000300112 is a 90 Degree Elbow made from stainless steel, designed to connect two pipes at a right angle to facilitate a change in flow direction. Compatibility with specific fluids is not specified; rated for corrosion resistance and a Class 3000 pressure rating, with verification per applicable codes. Maximum rated pressure: 3,000 psi (Class 3000); maximum operating pressure at 100°F is 2,570 psi. It is constructed from 304/304L stainless steel for durability and corrosion resistance. Finish: Electro-polished surface providing corrosion resistance.
Key Features:
- Material: 304/304L Stainless Steel for corrosion resistance and durability
- Fitting Shape: Elbow with a 90-degree angle for directional change
- Connection Type: FNPT end connections for threaded pipe joints
- Maximum rated pressure: 3,000 psi (Class 3000)
- Maximum operating pressure at 100°F: 2,570 psi
- Finish: Electro-polished surface providing corrosion resistance
- Ends: Fitting Side A and B both Female, with nominal size of 1 inch and outside diameter of 2 3/16 inches
- Threading: Side A and B both have 11 1/2 TPI threaded ends
- Standards: Conforms to ASTM A182/ASME SA182, ASME B16.11, ANSI B1.20.1
