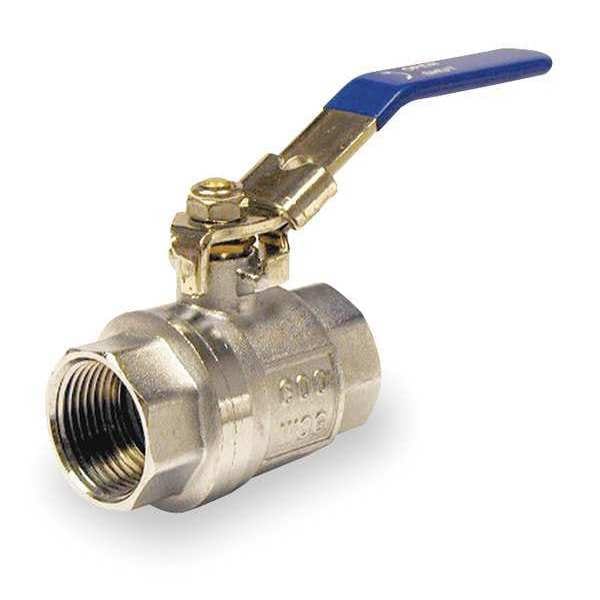

1" FNPT Chrome Brass Ball Valve Inline

  • Mfr # 107-825-CL

  • Zoro # G0741072

product price:
$
22.19
/ea

Key Features

Ball Material
Chrome-Plated Brass
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
107-825-CL
Zoro #
G0741072
UPC #
-
Country of Origin
China
Ball Material
Chrome-Plated Brass
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Combustible Gases, Steam, Water
Connection Type
FNPT x FNPT
Item
Ball Valve
Compliance
CSA ,UL, FM
Body Material
Chrome-Plated Brass
Stem Type
Blowout Resistant
Stem Material
Brass
Standards
ANSI Z21.15/CSA 9.1, ASME B16.33, ASME B16.44, FM 1140, MHKZ, YQNZ, YRBX, YRPV, YSDT
Seat Material
PTFE
Temp. Range
-20 Degrees to 300 Degrees F
Ball Valve Product Group
Manual
Handle Type
Lever
Max. Pressure
600 PSI CWP
Handle Material
304 Stainless Steel, PVC
Hose I.D.
1 in
Seal Material
PTFE
Type
Two Piece
Connection Gender - Side 1
Female
Operating Temperature - Minimum
-20 Degrees F
Maximum Pressure - Steam
600 psi
Connection Type - Side 2
IPS
Handle - Locking
Locking
Vented Ball Valve
Non-Vented
3-A Standard Compliance
Not Rated
Coefficient of Volume (Cv)
37.08
Operating Temperature - Maximum
300 Degrees F
Connection Gender - Side 2
Female
Maximum Pressure - Combustible Gas
Not Rated
Vacuum Service Rating
-29.92 in Hg
Connection Type - Side 1
IPS
Color - Valve Handle
Red
Valve Series
7700LHC-NP
Manufacturer Warranty
1 yr
Valve Body Style
Straight
Valve Construction
Two-Piece
Maximum Pressure - Operating
600 psi

Description

Manual Two-Way Ball Valve, Body Material Chrome-Plated Brass, For Media Combustible Gases, Steam, Water, Valve Construction Two-Piece, Nominal Valve Size 1 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 600 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating -29.92 in Hg, Ball Material Chrome-Plated Brass, Ball Port Style Full Port
