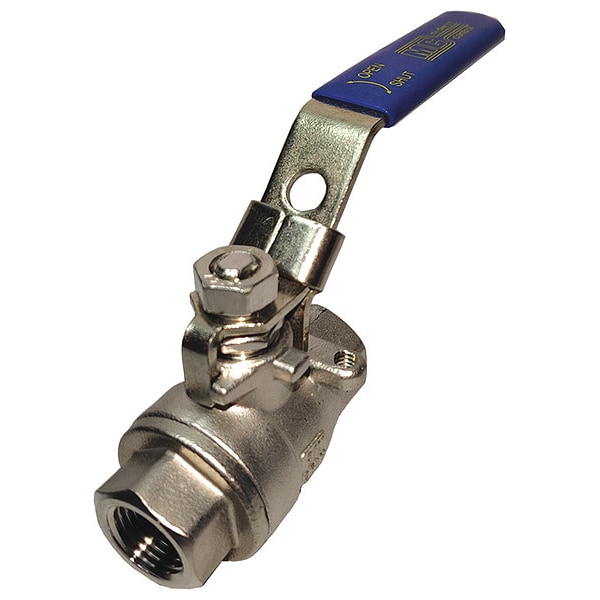

1" FNPT Stainless Steel Ball Valve Inline

product price: $84.75
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Size 1"
  • Body Material 316 Stainless Steel
  • Body Style Inline
  • Port Full
  • Ball Material 316 stainless steel
See all product information

Product Information

Dimensions

Pipe Size 1"
Overall Length 6.77 in
Nominal Valve Size 1 in
Connection Size - Side 1 1 in
Connection Size - Side 2 1 in

Details

Body Material 316 Stainless Steel
Body Style Inline
Port Full
Ball Material 316 stainless steel
Max. Pressure 2000 psi CWP
Ball Valve Product Group Manual
Features Panel Mount
Valve Structure 2-Piece
Item Ball Valve
Stem Material 316 stainless steel
Handle Type Locking Lever
Standards ANSI B1.20.3
Seat Material PTFE
Handle Material 304 Stainless Steel
Body Seal Material PTFE
Temp. Range 0 Degrees to 400 Degrees F
Ball Valve Basic Body Material Stainless Steel
Connection Type FNPT x FNPT
Max. Steam Pressure 150 psi WSP
Stem Type Blowout Proof
Seal Material PTFE
Type Panel Mount, Locking Handle
Connection FNPT
Material of Construction 316 Stainless Steel
Sub-Category Steel Ball Valves
Maximum Pressure - Combustible Gas Not Rated
Connection Type - Side 2 NPT
Connection Type - Side 1 NPT
Operating Temperature - Maximum 400 Degrees F
Operating Temperature - Minimum 0 Degrees F
Connection Gender - Side 2 Female
Vented Ball Valve Non-Vented
Valve Body Style Straight
Coefficient of Volume (Cv) 51.55
Ball Port Style Full Port
Handle - Locking Locking
Connection Gender - Side 1 Female
Valve Ways 2-Way
Vacuum Service Rating 29.9 in Hg
Maximum Pressure - Steam 150 psi
For Media Air, Steam, Water
3-A Standard Compliance Not Rated
Maximum Pressure - Operating 2,000 psi
Color - Valve Handle Blue
Valve Construction Two-Piece

Description

Manual Two-Way Ball Valve, Body Material 316 Stainless Steel, For Media Air, Steam, Water, Valve Construction Two-Piece, Nominal Valve Size 1 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 2,000 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29.9 in Hg, Ball Material 316 Stainless Steel, Ball Port Style Full Port, Handle - Locking Locking
