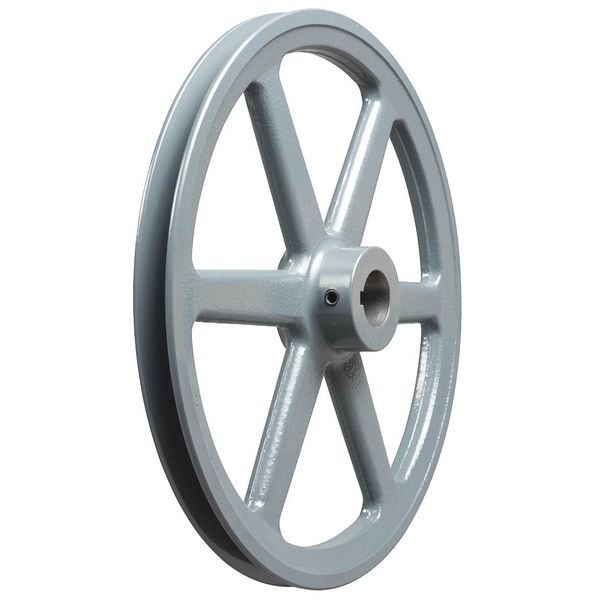

1 in Fixed Bore 1 Groove V-Belt Pulley 7.75 in OD
- Mfr # AK79X1
- Zoro # G6638095
product price:Â
$
52.19
/ea
Key Features
Fits Shaft Dia.
1 in
Pulley Outside Dia.
7.75 in
Number of Grooves
1
For V-Belt Section
3L, 4L, A, AX
Pulley Material
Cast Iron
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- AK79X1
- Zoro #
- G6638095
- UPC #
- -
- Country of Origin
- China
- Number of Grooves
- 1
- For V-Belt Section
- 3L, 4L, A, AX
- Pulley Material
- Cast Iron
- Pulley Type
- Standard V-Belt Pulley
- Bushing Required
- None
- Pulley Bore Type
- Fixed Bore
- Construction
- Arm
- Industry Number
- AK791
- Set Screw Included
- Yes
- Item
- V-Belt Pulley
- Includes
- Set Screw
- Material
- Cast Iron
- Hub Projection
- 0.72 in
- For V-Belt Type
- Cogged
- Material Fabrication
- Cast
- Standards
- ISO 9001:2015
- Bore Type
- Fixed
- Hub Type
- Single-Sided
- Weight
- 4.6 lb
- Pulley Construction
- Spoked
- Pulley Industry Number
- AK79
- Number of Set Screws
- 1
- Shell Material
- Cast Iron
- Traction Material
- Cast Iron
Dimensions
- Fits Shaft Dia.
- 1 in
- Pulley Outside Dia.
- 7.75 in
- Pulley Bore Dia.
- 1 in
- Keyway Size
- 0.250" x 0.125"
- 3L Belt Pitch Dia.
- 7.16 in
- 4L or A Belt Pitch Dia.
- 7.5 in
- 4L, A, or AX Belt Pitch Dia.
- 7.5 in
- Keyway Size Type
- 0.250 in x 0.125 in
- Maximum Bore Diameter
- 1 11/16 in
- A Pitch Diameter
- 7.5 in
- 3L Pitch Diameter
- 7.16 in
- Outside Diameter
- 7.75 in
- Bore Diameter
- 1 in
- Face Width
- 0.75 in
- Length through Bore
- 1 15/32 in
- Keyway Width
- 1/4 in
- Keyway Depth
- 1/8 in
- Pitch Diameter
- 7.16 in (3L), 7.5 in (4L, A)
- 4L Pitch Diameter
- 7.5 in
- AX Pitch Diameter
- 7.5 in
- Overall Width
- 1 1/2 in
- For Belt Trade Size
- 3L, 4L, A, AX
- Hub Diameter
- 2 3/8 in
Description
V-Belt Pulley, 3L Pitch Diameter 7.16 in, 3V Pitch Diameter Not Applicable, 3VX Pitch Diameter Not Applicable, 4L Pitch Diameter 7.5 in, 5L Pitch Diameter Not Applicable, 5V Pitch Diameter Not Applicable, 5VX Pitch Diameter Not Applicable, A Pitch Diameter 7.5 in, AX Pitch Diameter 7.5 in, B Pitch Diameter Not Applicable, BX Pitch Diameter Not Applicable, C Pitch Diameter Not Applicable, CX Pitch Diameter Not Applicable, Bore Diameter 1 in, Bore Type Fixed, Standards ISO 9001:2015
