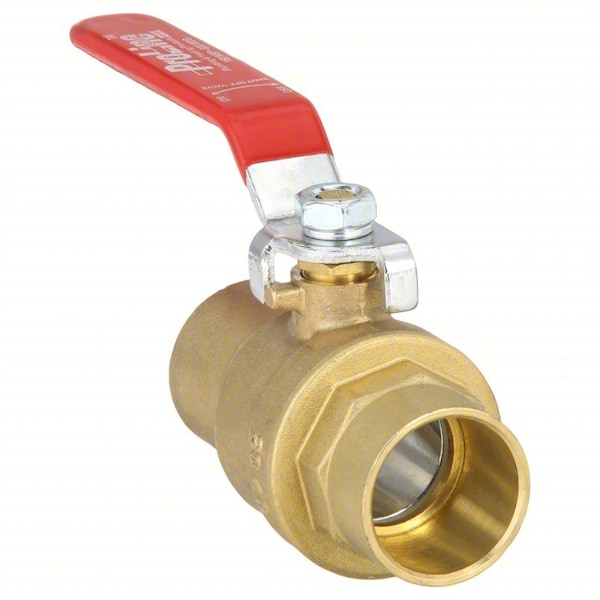

1" Sweat Brass Ball Valve Inline

product price: $14.55
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Material Brass
  • Body Style Inline
  • Tube Size 1"
  • Connection Type Sweat x Sweat
  • Stem Type 1-Piece Stem
See all product information

Product Information

Dimensions

Pipe Size 1"
Tube Size 1"
Overall Length 5.95 in
Connection Size - Side 2 1 in
Nominal Valve Size 1 in
Connection Size - Side 1 1 in

Details

Body Material Brass
Body Style Inline
Connection Type Sweat x Sweat
Stem Type 1-Piece Stem
Ball Valve Product Group Manual
Handle Material Chrome-Plated Steel with Vinyl Grip
Valve Structure 2-Piece
Standards ASTM
Item Ball Valve
Stem Material brass
Seat Material PTFE
Ball Valve Basic Body Material Brass
Max. Pressure 600 psi CWP
Body Seal Material PTFE
Ball Material Chrome Plated Brass
Temp. Range -20 Degrees to 300 Degrees F
Max. Steam Pressure 150 psi WSP
Handle Type Lever
Port Full
Features Below Out Proof
Seal Material PTFE
Connection Solder
Type Two Piece
Sub-Category Brass Ball Valves
Material of Construction Brass
Valve Body Style Straight
Valve Ways 2-Way
Valve Construction Two-Piece
Connection Type - Side 1 Sweat
Operating Temperature - Maximum 300 Degrees F
Maximum Pressure - Operating 600 psi
Vacuum Service Rating -29.92 in Hg
Ball Port Style Full Port
Coefficient of Volume (Cv) 37.08
Maximum Pressure - Combustible Gas Not Rated
Vented Ball Valve Non-Vented
Manufacturer Warranty 1 yr
Operating Temperature - Minimum -20 Degrees F
Handle - Locking Non-Locking
Maximum Pressure - Steam 600 psi
Color - Valve Handle Red
For Media Combustible Gases, Steam, Water
Connection Type - Side 2 Sweat
3-A Standard Compliance Not Rated

Description

Manual Two-Way Ball Valve, Body Material Brass, For Media Combustible Gases, Steam, Water, Valve Construction Two-Piece, Nominal Valve Size 1 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 600 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating -29.92 in Hg, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle - Locking Non-Locking

Restrictions

  • WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
