  11. 1/2" FNPT Brass Gas Ball Valve Inline
Zoro Select 1/2" FNPT Brass Gas Ball Valve Inline 110-223C - main

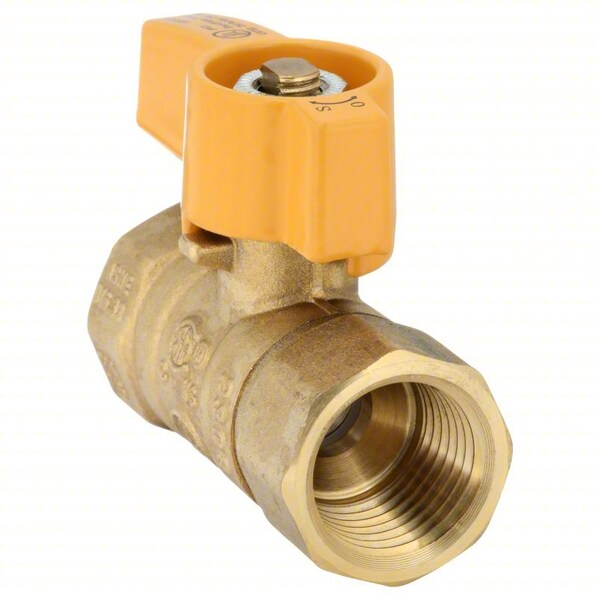

1/2" FNPT Brass Gas Ball Valve Inline

  • Mfr # 110-223C

  • Zoro # G1020031

product price: $6.49
/ea

Key Features

Ball Material
Brass
Body Style
Inline
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
110-223C
Zoro #
G1020031
UPC #
-
Country of Origin
China

Dimensions

Pipe Size
1/2 in
Overall Length
2.46 in
Connection Size - Side 2
1/2 in
Connection Size - Side 1
1/2 in
Nominal Valve Size
1/2 in

Details

Ball Material
Brass
Body Style
Inline
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Combustible Gases, Natural Gas
Connection Type
FNPT x FNPT
Item
Gas Ball Valve
Handle Material
Aluminum
Stem Material
Brass
Temp. Range
-4 Degrees to 250 Degrees F
Max. Pressure
600 PSI CWP
Standards
ANSI Z21.15/CGA 9.1, ASME B16.44, CGA CR91-002, UL MHKZ
Stem Type
Blowout Proof
Ball Valve Product Group
Manual
Seat Material
PTFE
Body Material
Brass
Handle Type
Lever
Seal Material
PTFE
Type
Two Piece, Gas
Handle - Locking
Non-Locking
Connection Type - Side 2
IPS
3-A Standard Compliance
Not Rated
Vacuum Service Rating
-29.92 in Hg
Color - Valve Handle
Yellow
Coefficient of Volume (Cv)
5.933
Maximum Pressure - Combustible Gas
Not Rated
Operating Temperature - Minimum
-20 Degrees F
Maximum Pressure - Steam
150 PSI WSP
Connection Gender - Side 1
Female
Connection Gender - Side 2
Female
Vented Ball Valve
Non-Vented
Operating Temperature - Maximum
300 Degrees F
Connection Type - Side 1
IPS
Valve Series
7702GE

Description

Manual Two-Way Ball Valve, Body Material Brass, For Media Combustible Gases, Natural Gas, Valve Construction Two-Piece, Nominal Valve Size 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 250 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating -29.92 in Hg, Ball Material Brass, Ball Port Style Standard Port, Handle - Locking Non-Locking
