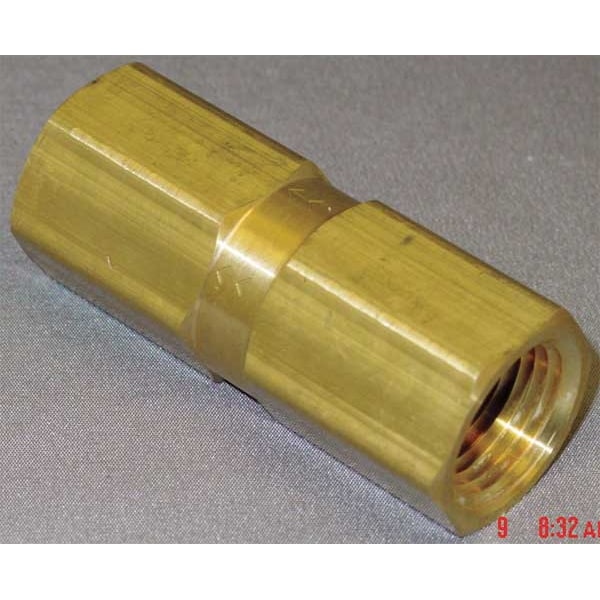

1/2" FNPT Brass Piston Spring Check Valve

  • Mfr # CHK BRS 815-8F8F-B

  • Zoro # G0452067

product price:
$
42.19
/ea

Key Features

Pipe Size
1/2"
Hex Size
1 in
Connection Type
FNPT
Connection
FNPT
Body Material
Brass
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CHK BRS 815-8F8F-B
Zoro #
G0452067
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size
1/2"
Hex Size
1 in
Width
1 in
Overall Height
1 in
Length
2 17/32 in
Pipe or Tube Size - Check Valves
1/2 in
Size
1/2"
Overall Length
2.55 in
Pipe or Tube Size
1/2 in
Nominal Valve Size
1/2 in
Connection Size - Side 2
1/2 in
Height - Cap to Inlet Center
7 7/16 in
Connection Size - Side 1
1/2 in
Wire Rope Length
2.55 in

Details

Connection Type
FNPT
Connection
FNPT
Body Material
Brass
Max. Water Pressure
500 psi
Spring Material - Check Valves
Stainless Steel
Max. Temp. - Valves
180 Degrees F
Min. Temp. - Valves
-20 Degrees F
Seat Material
Brass
Item
Piston Spring Check Valve
Spring Material
Stainless Steel
Max. Water Pressure - Valves
500 psi
Cracking Pressure - Check Valves
1.0 psi
Max. Pressure
1200 psi
Max. Temp.
250 Degrees F
Application - Valves
General Purpose
Cap to Inlet Center
7 13/32 in
Connection Type - Check Valves
FNPT x FNPT
Mounting Orientation - Check Valves
Horizontal, Vertical
Mechanism and Body Design
Inline Piston
Seat Material - Check Valves
Brass
Cracking Pressure
1 psi
Body Material - Valves
Brass
Sub-Category
Brass
Full Flow - Valves
Yes
Max. Steam Pressure - Valves
Not Rated
Seal Material
Buna-N
Flow Design
Single
Material of Construction
Brass
Item - Check Valves
Check Valve
Seal Material - Check Valves
Buna-N
Mounting Position
Vertical or Horizontal
Standards
UL, UR
Mounting Orientation
Horizontal, Vertical
Seal
Buna
Type
Piston Design
Valve Body Style
Inline
Operating Temperature - Maximum
180 Degrees F
Maximum Pressure - Operating
500 psi
Vacuum Service Rating
Not Rated
Connection Type - Side 2
NPT
Silent Check
Standard
Connection Gender - Side 1
Female
Coefficient of Volume (Cv)
3.1
3-A Standard Compliance
Not Rated
Connection Type - Side 1
NPT
Check Mechanism Material
Brass
For Media
Air, Fluids
Maximum Pressure - Steam
Not Rated
Connection Gender - Side 2
Female
Check Mechanism
Piston
Operating Temperature - Minimum
-20 Degrees F
Valve Series
815

Description

Zoro Select 815 series piston spring check valve with an inline, single-flow design, brass body, and 1/2 in FNPT x FNPT connections. It uses a spring-loaded brass piston to allow flow in one direction and close when flow slows or reverses. For general purpose air and fluid service, it can be mounted horizontally or vertically.

Key Features:

  • Inline piston spring check design for one-way flow control
  • 1/2 in female NPT x female NPT connections
  • Brass body, brass check mechanism, brass seat, stainless steel spring, and Buna-N seal
  • 1 psi cracking pressure
  • 500 psi maximum operating pressure and maximum water pressure; 1200 psi maximum pressure
  • Operating temperature range: -20 degrees F to 180 degrees F
  • Dimensions: 2.55 in overall length, 1 in overall height, 1 in overall width, and 1 in hex size
  • UL and UR standards
