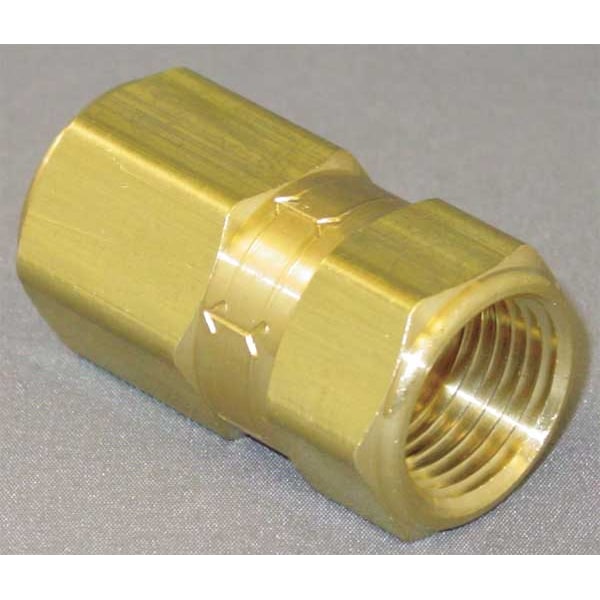

1/2" FNPT Brass Poppet Spring Check Valve

  • Mfr # CHK BRS 850-8F8F-B
  • Zoro # G1662376
product price:
$
31.89
/ea

Key Features

Pipe Size
1/2"
Hex Size
1 in
Connection Type
FNPT
Connection
FNPT
Body Material
Brass
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CHK BRS 850-8F8F-B
Zoro #
G1662376
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size
1/2"
Hex Size
1 in
Pipe or Tube Size - Check Valves
1/2 in
Width
1 in
Length
1 7/8 in
Size
1/2"
Overall Height
1 in
Overall Length
1.87 in
Pipe or Tube Size
1/2 in
Connection Size - Side 1
1/2 in
Connection Size - Side 2
1/2 in
Height - Cap to Inlet Center
7 7/16 in
Nominal Valve Size
1/2 in
Wire Rope Length
1.87 in

Details

Connection Type
FNPT
Connection
FNPT
Body Material
Brass
Cracking Pressure - Check Valves
1.0 psi
Seat Material
Brass
Flow Design
Single
Material of Construction
Brass
Spring Material - Check Valves
Stainless Steel
Max. Temp. - Valves
180 Degrees F
Max. Water Pressure
1200 psi
Max. Steam Pressure - Valves
Not Rated
Connection Type - Check Valves
FNPT x FNPT
Full Flow - Valves
Yes
Cap to Inlet Center
7 13/32 in
Max. Temp.
250 Degrees F
Application - Valves
General Purpose
Seal Material - Check Valves
Buna-N
Mounting Orientation - Check Valves
Horizontal, Vertical
Body Material - Valves
Brass
Max. Pressure
1200 psi
Max. Water Pressure - Valves
1200 psi
Mechanism and Body Design
Inline Poppet
Sub-Category
Brass
Min. Temp. - Valves
-20 Degrees F
Cracking Pressure
1 psi
Item
Poppet Spring Check Valve
Mounting Position
Vertical or Horizontal
Spring Material
Stainless Steel
Item - Check Valves
Check Valve
Seat Material - Check Valves
Brass
Seal Material
Buna-N
Standards
UL, UR
Mounting Orientation
Horizontal, Vertical
Seal
Buna
Type
Poppet Design
For Media
Water
Maximum Pressure - Steam
Not Rated
Valve Body Style
Inline
Operating Temperature - Minimum
-20 Degrees F
3-A Standard Compliance
Not Rated
Operating Temperature - Maximum
180 Degrees F
Vacuum Service Rating
Not Rated
Maximum Pressure - Operating
1,200 psi
Connection Type - Side 2
NPT
Silent Check
Standard
Check Mechanism
Poppet
Coefficient of Volume (Cv)
4.6
Connection Type - Side 1
NPT
Connection Gender - Side 1
Female
Connection Gender - Side 2
Female
Valve Series
850

Description

Zoro Select 850 Series poppet spring check valve with an inline, single-flow design for general-purpose water service. It uses a spring-loaded poppet to allow flow in one direction and close when flow stops or reverses for one-way flow applications when used within specified ratings. The brass body features 1/2 in female NPT connections on both ends and can be mounted horizontally or vertically.

Key Features:

  • Poppet spring check valve with inline body design for one-way flow control
  • 1/2 in FNPT x FNPT connections with female NPT ports on both sides
  • Brass body with brass seat, Buna-N seal, and stainless steel spring
  • Cracking pressure: 1 psi
  • Flow coefficient Cv: 4.6
  • Media: Water
  • Maximum water pressure: 1200 psi
  • Operating temperature range: -20 degrees F to 180 degrees F
  • Overall length: 1.87 in; overall height: 1 in
  • Standards: UL, UR
