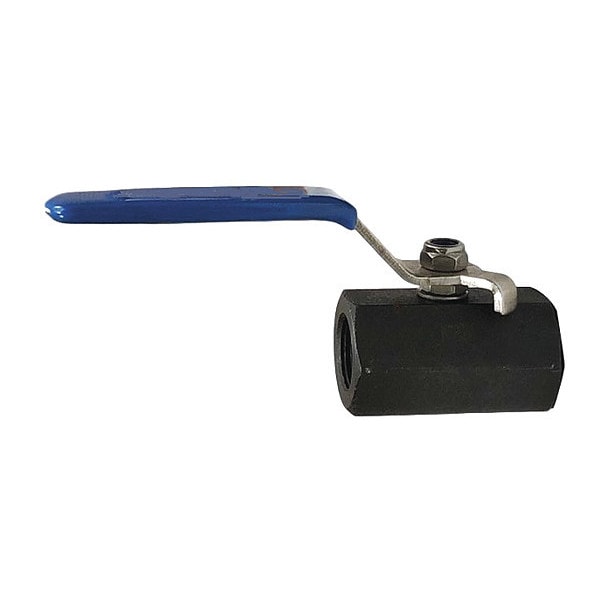

1/2" FNPT Carbon Steel Ball Valve Inline

product price: $16.79
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Material Carbon Steel
  • Body Style Inline
  • Ball Valve Product Group Manual
  • Ball Material 304 Stainless Steel
  • Handle Material 304 Stainless Steel
See all product information

Product Information

Dimensions

Pipe Size 1/2"
Overall Length 2.44 in
Connection Size - Side 1 1/2 in
Handle Length 4.53 in
Connection Size - Side 2 1/2 in
Nominal Valve Size 1/2 in

Details

Body Material Carbon Steel
Body Style Inline
Ball Valve Product Group Manual
Ball Material 304 Stainless Steel
Handle Material 304 Stainless Steel
Max. Pressure 2000 psi CWP
Body Seal Material PTFE
Temp. Range -20 Degrees to 425 Degrees F
Max. Steam Pressure 150 psi WSP
Item Ball Valve
Seat Material PTFE
Stem Material 304 Stainless Steel
Stem Type 1-Piece Stem
Port Standard
Handle Type Lever
Ball Valve Basic Body Material Carbon Steel
Connection Type FNPT x FNPT
Valve Structure 1-Piece
Standards ASTM
Seal Material PTFE
Connection FNPT
Type One Piece
Sub-Category Steel Ball Valves
Material of Construction Carbon Steel
Valve Body Style Straight
Color - Valve Handle Yellow
For Media Combustible Gases, Water
Operating Temperature - Minimum -20 Degrees F
Connection Type - Side 2 NPT
Connection Gender - Side 2 Female
Handle - Locking Locking
Maximum Pressure - Operating 2,000 psi
Valve Construction One-Piece
Connection Type - Side 1 NPT
Connection Gender - Side 1 Female
Maximum Pressure - Combustible Gas Not Rated
3-A Standard Compliance Not Rated
Maximum Pressure - Steam 2,000 psi
Operating Temperature - Maximum 425 Degrees F
Vented Ball Valve Non-Vented
Ball Port Style Standard Port
Valve Ways 2-Way

Description

Manual Two-Way Ball Valve, Body Material Carbon Steel, For Media Combustible Gases, Water, Valve Construction One-Piece, Nominal Valve Size 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 2,000 psi, Maximum Pressure - Steam 2,000 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Applicable, Ball Material 304 Stainless Steel, Ball Port Style Standard Port
