  11. 1/2" FNPT Chrome Brass Ball Valve Inline

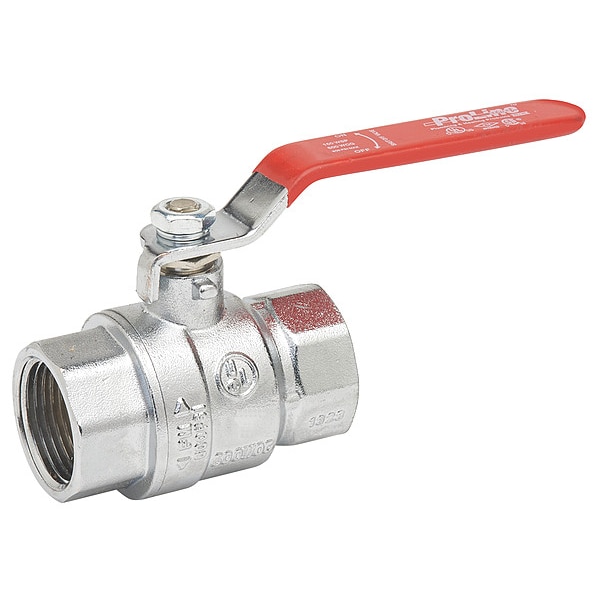

Zoro Select 1/2" FNPT Chrome Brass Ball Valve Inline 107-823-CP - main

1/2" FNPT Chrome Brass Ball Valve Inline

  • Mfr # 107-823-CP

  • Zoro # G1236891

product price: $10.35
/ea

Key Features

Ball Material
Chrome Plated Brass
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
107-823-CP
Zoro #
G1236891
UPC #
-
Country of Origin
China

Dimensions

Pipe Size
1/2 in
Overall Length
4.58 in
Nominal Valve Size
1/2 in
Connection Size - Side 2
1/2 in
Connection Size - Side 1
1/2 in

Details

Ball Material
Chrome Plated Brass
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Combustible Gases, Steam, Water
Connection Type
FNPT x FNPT
Item
Ball Valve
Standards
ANSI Z21.15/CSA 9.1, ASME B16.33, ASME B16.44, FM 1140, MHKZ, YQNZ, YRBX, YRPV, YSDT
Stem Material
Brass
Stem Type
Blowout Proof
Body Material
Brass
Ball Valve Product Group
Manual
Handle Material
Steel with Vinyl Grip
Seat Material
PTFE
Handle Type
Lever
Max. Pressure
600 PSI CWP
Temp. Range
-40 Degrees to 400 Degrees F
Seal Material
PTFE
Type
Two Piece
Handle - Locking
Non-Locking
Vacuum Service Rating
-29.92 in Hg
Connection Type - Side 1
IPS
Maximum Pressure - Steam
150 PSI WSP
Coefficient of Volume (Cv)
13.349
Operating Temperature - Minimum
-20 Degrees F
Connection Gender - Side 2
Female
Connection Gender - Side 1
Female
Vented Ball Valve
Non-Vented
Color - Valve Handle
Red
Connection Type - Side 2
IPS
Operating Temperature - Maximum
300 Degrees F
Maximum Pressure - Combustible Gas
Not Rated
3-A Standard Compliance
Not Rated
Valve Series
7700TC-NP

Description

Manual Two-Way Ball Valve, Body Material Chrome-Plated Brass, For Media Combustible Gases, Steam, Water, Valve Construction Two-Piece, Nominal Valve Size 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating -29.92 in Hg, Ball Material Chrome-Plated Brass, Ball Port Style Full Port

Restrictions

WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
