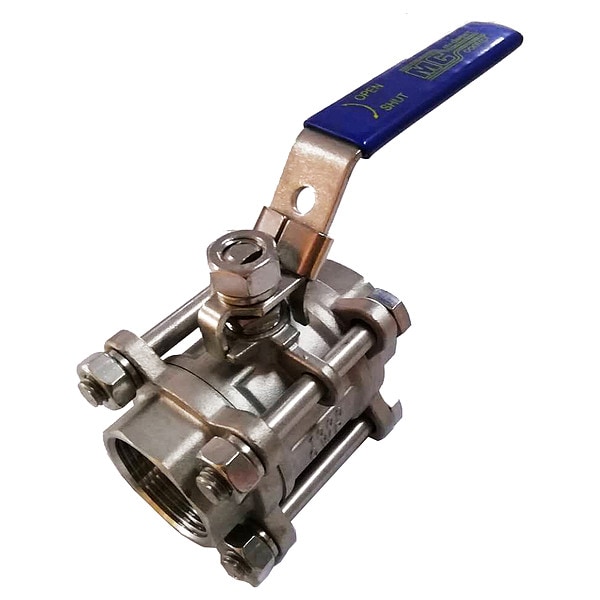

1/2" FNPT Stainless Steel Ball Valve Inline

  • Mfr # G-S3P1K-50

  • Zoro # G1657871

product price:
$
29.55
/ea

Key Features

Ball Material
316 Stainless Steel
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Three-Piece
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
G-S3P1K-50
Zoro #
G1657871
UPC #
-
Country of Origin
China
Ball Material
316 Stainless Steel
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Three-Piece
For Media
Air, Steam, Water
Connection Type
FNPT x FNPT
Item
Ball Valve
Temp. Range
0 Degrees to 400 Degrees F
Handle Type
Lever
Max. Pressure
1,000 PSI CWP
Ball Valve Product Group
Manual
Stem Material
316 Stainless Steel
Body Material
316 Stainless Steel
Standards
ASTM A351-CF8M
Seat Material
RPTFE
Stem Type
Self-Adjusting
Handle Material
304 Stainless Steel
Seal Material
FKM
Type
Three Piece
Color - Valve Handle
Blue
Vented Ball Valve
Non-Vented
Connection Type - Side 1
NPT
Operating Temperature - Maximum
400 Degrees F
Maximum Pressure - Combustible Gas
Not Rated
Connection Gender - Side 1
Female
3-A Standard Compliance
Not Rated
Handle - Locking
Locking
Coefficient of Volume (Cv)
18.55
Connection Type - Side 2
NPT
Maximum Pressure - Steam
150 psi
Vacuum Service Rating
29.9 in Hg
Connection Gender - Side 2
Female
Operating Temperature - Minimum
0 Degrees F
Maximum Pressure - Operating
1,000 psi
Valve Construction
Three-Piece
Valve Body Style
Straight

Description

Manual Two-Way Ball Valve, Body Material 316 Stainless Steel, For Media Air, Steam, Water, Valve Construction Three-Piece, Nominal Valve Size 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 1,000 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29.9 in Hg, Ball Material 316 Stainless Steel, Ball Port Style Full Port, Handle - Locking Locking
