  11. 1/2" FNPT x Flare Brass Gas Ball Valve Inline
Zoro Select 1/2" FNPT x Flare Brass Gas Ball Valve Inline G-GBV-5050F - main

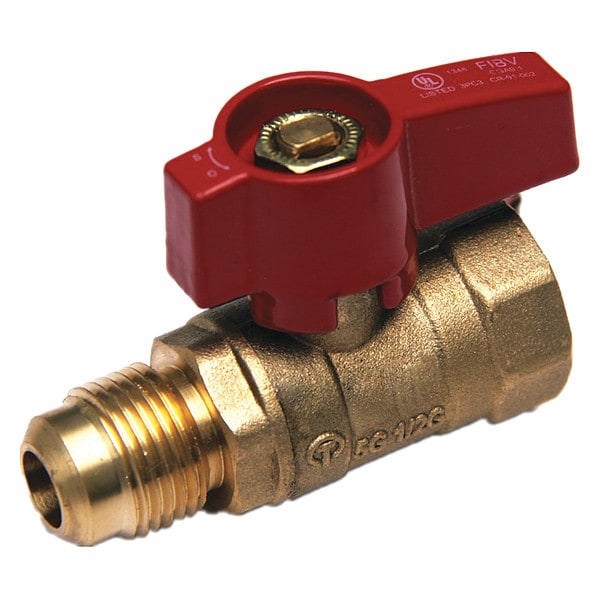

1/2" FNPT x Flare Brass Gas Ball Valve Inline

  • Mfr # G-GBV-5050F

  • Zoro # G3145992

product price: $9.29
/ea

Key Features

Ball Material
Chrome Plated Brass
Body Style
Inline
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
G-GBV-5050F
Zoro #
G3145992
UPC #
-
Country of Origin
China

Dimensions

Pipe Size
1/2 in
Overall Length
2.52 in
Nominal Valve Size
1/2 in
Connection Size - Side 1
1/2 in
Connection Size - Side 2
1/2 in

Details

Ball Material
Chrome Plated Brass
Body Style
Inline
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Air, Natural Gas, Steam, Water
Connection Type
FNPT x Flare
Item
Gas Ball Valve
Body Material
Brass
Handle Type
Tee
Stem Type
Blowout Proof
Handle Material
Aluminum
Standards
ANSI Z21.15/ CSA 9.1, ASME B16.44, CGA CR91-002, MSS SP-110
Ball Valve Product Group
Manual
Seat Material
PTFE
Temp. Range
-4 Degrees to 250 Degrees F
Stem Material
Brass
Hose I.D.
1/2 in
Max. Pressure
600 PSI CWP
Seal Material
Buna-N
Type
Two Piece, Gas
Handle - Locking
Non-Locking
Connection Gender - Side 1
Female
Connection Gender - Side 2
Male
Vented Ball Valve
Non-Vented
Maximum Pressure - Combustible Gas
Not Rated
Vacuum Service Rating
Not Rated
Operating Temperature - Minimum
-4 Degrees F
3-A Standard Compliance
Not Rated
Connection Type - Side 1
NPT
Connection Type - Side 2
Flare
Coefficient of Volume (Cv)
18.55
Operating Temperature - Maximum
250 Degrees F
Color - Valve Handle
Red
Maximum Pressure - Steam
150 PSI WSP

Description

Manual Two-Way Ball Valve, Body Material Brass, For Media Air, Natural Gas, Steam, Water, Valve Construction Two-Piece, Nominal Valve Size 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Rated, Ball Material Chrome-Plated Brass, Ball Port Style Standard Port

Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
