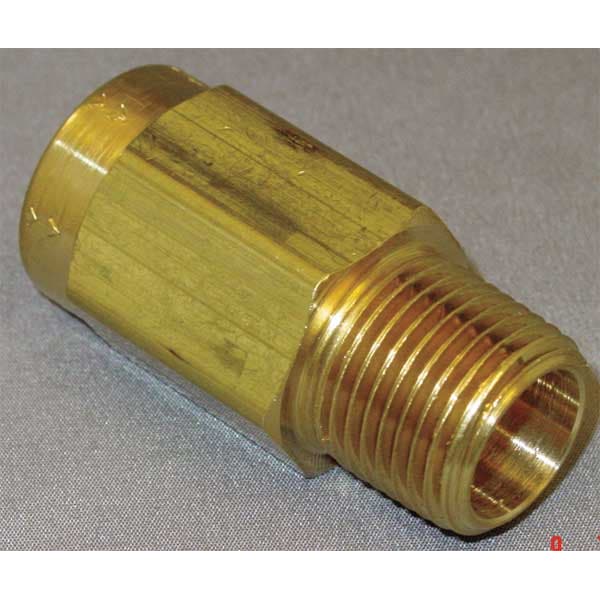

1/2" FNPT x MNPT Brass Piston Spring Check Valve

  • Mfr # CHK BRS 810-8F8M-B

  • Zoro # G2554501

product price:
$
29.59
/ea

Key Features

Pipe Size
1/2"
Hex Size
1 in
Connection Type
FNPT x MNPT
Connection
FNPT x MNPT
Body Material
Brass
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CHK BRS 810-8F8M-B
Zoro #
G2554501
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size
1/2"
Hex Size
1 in
Pipe or Tube Size - Check Valves
1/2"
Overall Height
1"
Size
1/2"
Width
1"
Length
2.08"
Overall Length
1.88 in
Pipe or Tube Size
1/2 in
Nominal Valve Size
1/2 in
Connection Size - Side 1
1/2 in
Height - Cap to Inlet Center
5 7/16 in
Connection Size - Side 2
1/2 in
Wire Rope Length
1.88 in

Details

Connection Type
FNPT x MNPT
Connection
FNPT x MNPT
Body Material
Brass
Max. Steam Pressure - Valves
Not Rated
Max. Water Pressure - Valves
500 psi
Application - Valves
General Purpose
Seat Material
Brass
Max. Temp. - Valves
180 Degrees F
Min. Temp. - Valves
-20 Degrees F
Cap to Inlet Center
5-7/16"
Seal Material
Buna-N
Max. Water Pressure
500 psi
Body Material - Valves
Brass
Sub-Category
Brass
Connection Type - Check Valves
MNPT x FNPT
Mounting Orientation - Check Valves
Horizontal, Vertical
Cracking Pressure
1 psi
Cracking Pressure - Check Valves
1.000 psi
Spring Material - Check Valves
Stainless Steel
Mounting Position
Vertical or Horizontal
Mechanism and Body Design
Inline Piston
Full Flow - Valves
Yes
Material of Construction
Brass
Max. Temp.
250 Degrees F
Spring Material
Stainless Steel
Item
Piston Spring Check Valve
Max. Pressure
500 psi
Item - Check Valves
Check Valve
Seat Material - Check Valves
Brass
Flow Design
Single
Seal Material - Check Valves
Buna-N
Mounting Orientation
Horizontal, Vertical
Seal
Buna
Type
Piston Design
Coefficient of Volume (Cv)
2.2
Maximum Pressure - Operating
500 psi
Maximum Pressure - Steam
Not Rated
Check Mechanism Material
Brass
Silent Check
Standard
Check Mechanism
Piston
Operating Temperature - Minimum
-20 Degrees F
Connection Type - Side 1
NPT
Connection Gender - Side 2
Male
Connection Gender - Side 1
Female
Connection Type - Side 2
NPT
Valve Body Style
Inline
For Media
Air, Fluids
3-A Standard Compliance
Not Rated
Operating Temperature - Maximum
180 Degrees F
Vacuum Service Rating
Not Rated
Valve Series
810

Description

ZORO SELECT series 810 check valve is an inline piston spring check valve for general-purpose air and fluid service. It uses a spring-loaded brass piston and is configured for one-way flow applications and intended to reduce backflow in piping systems. This 1/2 in. valve has FNPT x MNPT NPT connections, a 1 psi cracking pressure, and can be mounted horizontally or vertically.

Key Features:

  • Valve type: Piston spring check valve with inline body design and single flow path.
  • Body and internal materials: Brass body, brass check mechanism, brass seat, Buna-N seal, and stainless steel spring.
  • Connections: 1/2 in. FNPT x MNPT; side 1 female NPT and side 2 male NPT.
  • Pressure rating: 500 psi maximum operating pressure and maximum water pressure.
  • Temperature range: -20 degrees F minimum operating temperature to 180 degrees F maximum operating temperature.
  • Flow characteristics: Cv 2.2 and 1 psi cracking pressure.
  • Mounting: Horizontal or vertical orientation.
  • Dimensions: 1.88 in. overall length, 1 in. overall height and width, 1 in. hex size, and 5 7/16 in. cap to inlet center.
