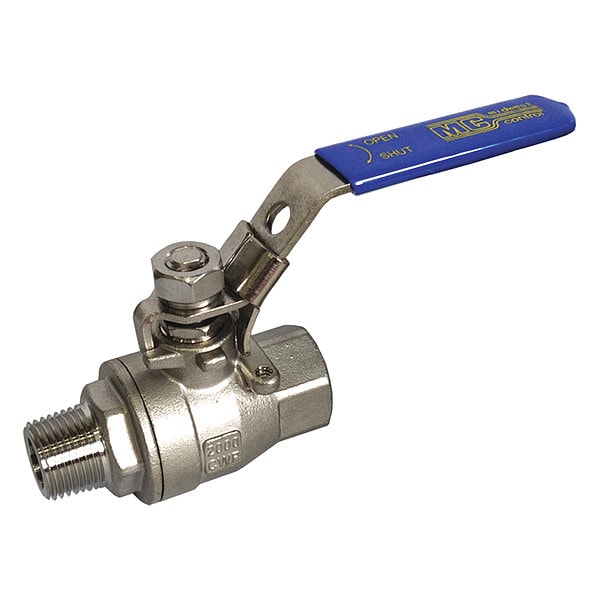

1/2" FNPT x MNPT Stainless Steel Ball Valve Inline

original price: $70.49
37% off
new price: $44.35
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Size 1/2"
  • Body Material 316 Stainless Steel
  • Body Style Inline
  • Features Panel Mount
  • Stem Type Blowout Proof
See all product information

Product Information

Dimensions

Pipe Size 1/2"
Overall Length 4.16"
Connection Size - Side 2 1/2 in
Connection Size - Side 1 1/2 in
Nominal Valve Size 1/2 in

Details

Body Material 316 Stainless Steel
Body Style Inline
Features Panel Mount
Stem Type Blowout Proof
Max. Pressure 2000 psi CWP
Handle Material 304 Stainless Steel
Body Seal Material PTFE
Connection Type FNPT x MNPT
Handle Type Lever
Ball Material 316 stainless steel
Max. Steam Pressure 150 psi WSP
Seat Material PTFE
Standards ANSI B1.20.3
Temp. Range 0 Degrees to 400 Degrees F
Ball Valve Basic Body Material Stainless Steel
Item Ball Valve
Valve Structure 2-Piece
Ball Valve Product Group Manual
Port Full
Stem Material 316 stainless steel
Seal Material PTFE
Connection MNPT x FNPT
Material of Construction 316 Stainless Steel
Sub-Category Steel Ball Valves
For Media Air, Steam, Water
Operating Temperature - Minimum 0 Degrees F
Connection Type - Side 2 NPT
Connection Type - Side 1 NPT
Handle - Locking Non-Locking
Vacuum Service Rating 29.9 in Hg
Color - Valve Handle Blue
Connection Gender - Side 1 Male
Operating Temperature - Maximum 400 Degrees F
Ball Port Style Full Port
Connection Gender - Side 2 Female
Valve Construction Two-Piece
Maximum Pressure - Operating 2,000 psi
Valve Body Style Straight
Vented Ball Valve Non-Vented
Maximum Pressure - Combustible Gas Not Rated
Coefficient of Volume (Cv) 18.55
Maximum Pressure - Steam 150 psi
3-A Standard Compliance Not Rated
Valve Ways 2-Way

Description

Manual Two-Way Ball Valve, Body Material 316 Stainless Steel, For Media Air, Steam, Water, Valve Construction Two-Piece, Nominal Valve Size 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 2,000 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29.9 in Hg, Ball Material 316 Stainless Steel, Ball Port Style Full Port
