1/2" NPT 304 SS 45 Degree Lateral

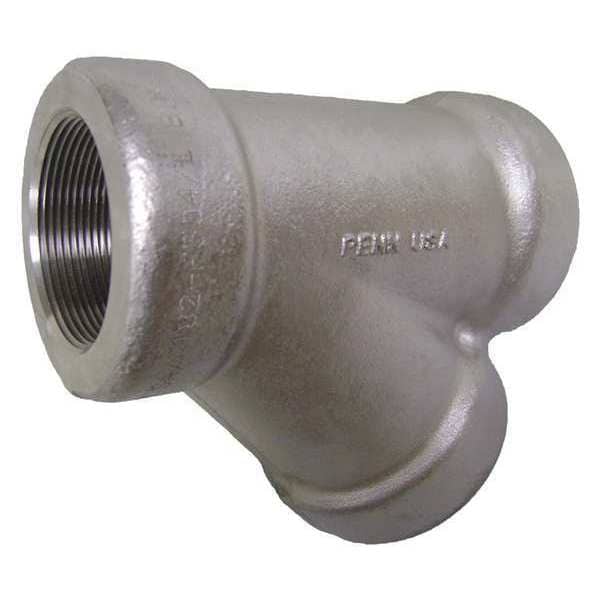

The ZORO SELECT - 1000300612 is a 45 Degree Lateral stainless steel pipe fitting designed to connect branch lines to main runs at a 45° angle. Material: 304 Stainless Steel. This fitting features female NPT connections on all three ports, each sized at 1/2 inch nominal pipe size. Pressure Rating: 3000 psi maximum at 100°F. Applications: natural gas, non-potable water, and oil systems in process, drainage, and utility piping. The overall length of the fitting is 2 1/2 inches and it meets standards LF2 ASME B16.11 and SA182.

Key Features:

• Material: 304 Stainless Steel
• Configuration: 45 Degree Lateral with three female NPT connections
• Nominal Pipe Size: 1/2 in on all ports
• Connection Type: Female NPT threads with 14 threads per inch
• Pressure Rating: 3000 psi maximum at 100°F
• Temperature Range: -20°F to 100°F
• Overall Length: 2 1/2 in
• Applications: natural gas, non-potable water, and oil systems in process, drainage, and utility piping
• Compliance: Meets LF2 ASME B16.11 and SA182 standards
• Does not include pre-applied thread sealant or seals
