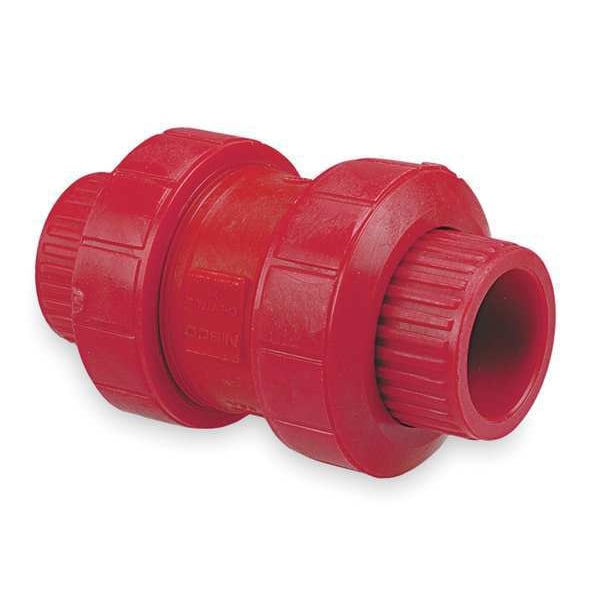

1/2" Socket Kynar Ball Check Valve

  • Mfr # S65BC-V 1/2

  • Zoro # G2452947

product price:
$
331.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
1/2"
Hex Size
1/2 in
Connection Type
socket
Connection
Slip Socket
Valve Design
Ball Valve
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S65BC-V 1/2
Zoro #
G2452947
UPC #
039923754073
Country of Origin
United States

Dimensions

Pipe Size
1/2"
Hex Size
1/2 in
Pipe Size (Fittings)
1/2"
Pipe Size - Pipe Fitting
1/2 in
Size
1/2"
Length
4.13"
Width
1.98"
Overall Length
6.27 in
Overall Height
1 63/64 in
Pipe or Tube Size
1/2 in
Connection Size - Side 2
1/2 in
Nominal Valve Size
1/2 in
Connection Size - Side 1
1/2 in
Height - Cap to Inlet Center
2 3/8 in
Wire Rope Length
6.27 in

Details

Connection Type
socket
Connection
Slip Socket
Valve Design
Ball Valve
Body Material
Red Kynar(R) Polyvinylidene Fluoride
Item
Ball Check Valve
Standards
ASTM D3222
Max. Pressure
150 psi @ 73 Degrees F
Basic Pipe Fitting Material
Plastic
Material of Construction
Red Kynar(R) Polyvinylidene Fluoride
Specific Fitting Shape
Ball Valve
Max. Socket Pressure
150 psi
Fitting Connection Type
Slip Socket
Max. Thread Pressure
150 psi
Pipe Fitting Schedule/Class
Schedule 80
Color
Red
Specific Pipe Fitting Shape
Ball Valve
Pipe Fitting Connection Type
Slip Socket
Temp. Range
73 Degrees to 280 Degrees F
Fitting Schedule/Class
Schedule 80
Pipe Fitting Material
Kynar(R)
Cap to Inlet Center
2 9/25 in
Flow - Valves
5 gpm
Body Material - Valves
Kynar(R)
Seat Material
FKM
Max. Temp. - Valves
180 Degrees F
Max. Water Pressure - Valves
150 psi @ 73 Degrees F
Seal Material
FKM
Flow
5 gpm
Cracking Pressure
2.6 psi
Item - Check Valves
Check Valve
Full Flow - Valves
No
Mounting Orientation
Horizontal, Vertical
Flow Design
Single
Application - Valves
General Purpose
Mechanism and Body Design
Inline Ball
Min. Temp. - Valves
-30 Degrees F
Connection Type - Side 1
Socket
Connection Gender - Side 1
Female
Operating Temperature - Minimum
-30 Degrees F
Silent Check
Standard
Includes Counterweight
No Counterweight
Valve Ways
2-Way
Manufacturer Warranty
1 yr
Vacuum Service Rating
Not Rated
Check Mechanism
Ball
For Media
Water
Maximum Pressure - Steam
Not Rated
Connection Type - Side 2
Socket
3-A Standard Compliance
Not Rated
Connection Gender - Side 2
Female
Check Mechanism Material
PVDF
Valve Body Style
Inline
Operating Temperature - Maximum
280 Degrees F
Maximum Pressure - Operating
150 psi
Max. Pressure (PSI)
1360
Type
Schedule 80
Valve Series
Model C

Description

This 1/2 in. ball check valve is an inline, single-flow valve that uses a PVDF ball to permit one-direction flow and help restrict reverse flow when pressure changes. It is intended for general-purpose water service and features a red Kynar® polyvinylidene fluoride body with female slip socket connections on both ends for 1/2 in. piping.

Key Features:

  • Inline ball check valve for one-direction flow applications
  • Nominal size: 1/2 in.
  • Connections: 1/2 in. female socket x female socket, slip socket
  • Body material: red Kynar® polyvinylidene fluoride; check mechanism material: PVDF
  • Seal and seat material: FKM
  • Cracking pressure: 2.6 psi
  • Flow rating: 5 gpm
  • Maximum operating pressure: 150 psi at 73°F
  • Temperature range: -30°F to 180°F
  • Mounting orientation: horizontal or vertical
  • Body style: inline; flow design: single
  • Schedule/Class: Schedule 80
  • Standards: ASTM D3222
