Shop All Ball Valves
Zoro Select

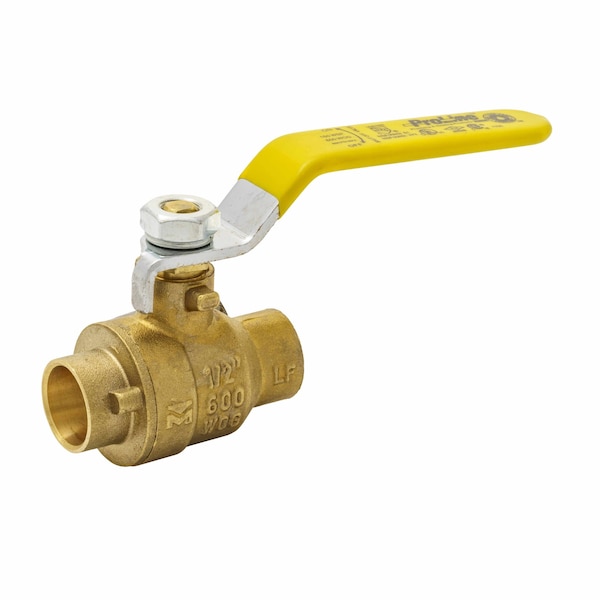

1/2" Sweat Brass Ball Valve Inline

product price: $12.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Material Lead-Free Brass
  • Body Style Inline
  • Connection Type Sweat x Sweat
  • Max. Pressure 600 psi CWP
  • Seat Material PTFE
See all product information

Product Information

Dimensions

Pipe Size 1/2"
Overall Length 4.6 in
Connection Size - Side 1 1/2 in
Nominal Valve Size 1/2 in
Connection Size - Side 2 1/2 in

Details

Body Material Lead-Free Brass
Body Style Inline
Connection Type Sweat x Sweat
Max. Pressure 600 psi CWP
Seat Material PTFE
Max. Steam Pressure 150 psi WSP
Ball Valve Basic Body Material Brass
Port Full
Stem Material brass
Standards ANSI B 1.20.1 Compliant, cUPC,UL,CSA,FM
Item Ball Valve
Stem Type Blowout Proof
Handle Type Lever
Ball Valve Product Group Manual
Handle Material Chrome Plated Steel with Vinyl Grip
Body Seal Material PTFE
Ball Material 304 Stainless Steel
Hose I.D. 1/2 in
Temp. Range -20 Degrees to 300 Degrees F
Valve Structure 2-Piece
Seal Material PTFE
Connection Solder End
Type Two Piece
Material of Construction Low Lead Brass
Sub-Category Brass Ball Valves
Operating Temperature - Minimum -20 Degrees F
Vented Ball Valve Non-Vented
Maximum Pressure - Operating 600 psi
Color - Valve Handle Yellow
NSF Certifications for Food and Drinking Water NSF 61
For Media Combustible Gases, Steam, Water
Handle - Locking Non-Locking
Connection Type - Side 1 Sweat
Valve Construction Two-Piece
Maximum Pressure - Combustible Gas Not Rated
Connection Type - Side 2 Sweat
Ball Port Style Full Port
3-A Standard Compliance Not Rated
Valve Body Style Straight
Operating Temperature - Maximum 300 Degrees F
Vacuum Service Rating -29.92 in Hg
Manufacturer Warranty 1 yr
Maximum Pressure - Steam 600 psi
Valve Ways 2-Way
Coefficient of Volume (Cv) 10.026

Description

Manual Two-Way Ball Valve, Body Material Brass, For Media Combustible Gases, Steam, Water, Valve Construction Two-Piece, Nominal Valve Size 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 600 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating -29.92 in Hg, Ball Material 304 Stainless Steel, Ball Port Style Full Port
