1/2" Welded SS Weld Neck Flange Sch 40
Mfr # 4381004600
Zoro # G3326057
Key Features
Specifications
Product Information
- MFR #
- 4381004600
- Zoro #
- G3326057
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Pipe Size - Pipe Fitting
- 1/2"
- Outside Dia.
- 3-3/4"
- Pipe Size (Fittings)
- 1/2"
- Pipe Size
- 1/2"
- Flange Outside Diameter
- 3 3/4 in
- Nominal Pipe Size
- 1/2 in
- Bolt Circle Diameter
- 2 3/8 in
- Overall Length
- 2 1/16 in
- Bolt Hole Diameter
- 5/8 in
- Flange Thickness
- 5/8 in
- Wire Rope Length
- 2 1/16 in
- Length
- 2 1/16 in
Description

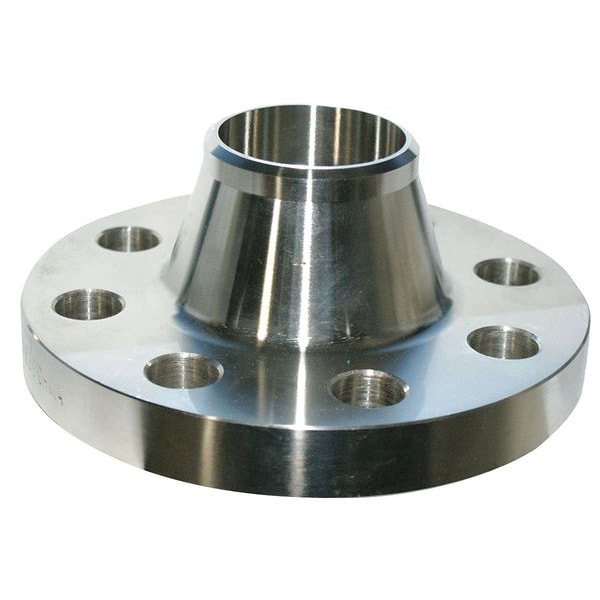

The ZORO SELECT - 4381004600 is a stainless steel weld neck flange made from 304/304L alloy, rated for use within specified pressure, temperature, and corrosive conditions. Its long, tapered hub features consistent with weld neck flange specifications, allowing for butt-welding to pipes and providing a smooth flow path. The flange installs through welding and features a bolt circle diameter of 2 3/8 inches and four bolt holes of 5/8 inches in diameter. It has an outside diameter of 3 3/4 inches, a flange thickness of 5/8 inches, and an overall length of 2 1/16 inches. The connection surface conforms to standard flange face specifications, and the product is manufactured in accordance with ASTM-SA182 and ANSI B16.5 standards. Its rated pressure capacity is up to 720 psi, and steam pressure specifications comply with relevant standards.
Key Features:
- Material: Forged 304/304L Stainless Steel, rated for use within specified pressure, temperature, and corrosive conditions
- Connection type: Welded, compatible with piping systems for which it is rated
- Pressure ratings: Rated for operation up to 720 psi; steam pressure specifications comply with relevant standards
- Dimensions: Manufactured to specified dimensions, including bolt circle diameter 2 3/8 in, outside diameter 3 3/4 in, flange thickness 5/8 in, overall length 2 1/16 in
- Number of bolt holes: 4, with each bolt hole diameter of 5/8 in, in accordance with standards
- Connection surface: Raised face for sealing against gaskets or mating surfaces
- Standards: ASTM-SA182, ANSI B16.5
- Nominal pipe size: rated for use with pipes of nominal size 1/2 inch
- Fitting schedule/class: Class 300
