Shop All Flared Tube Fittings
Zoro Select

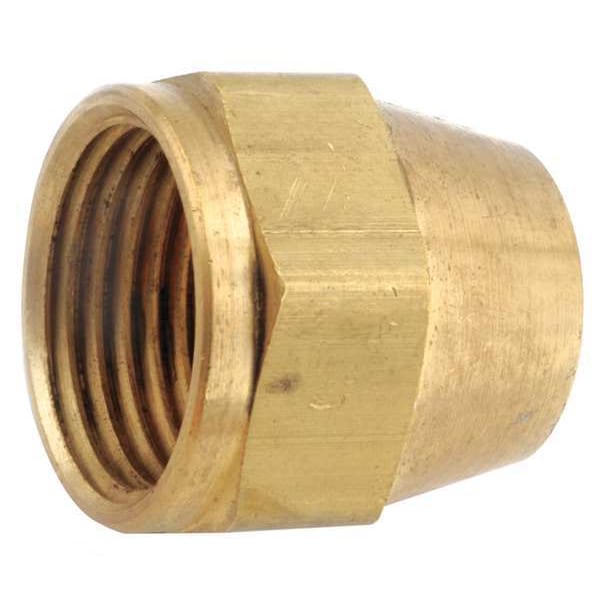

1/4" Female Flare Low Lead Brass Short Nut

product price: $1.65
/ea
Sold in multiples of 5 for $8.25
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Tube Fitting Material Low Lead Brass
  • Flare Type 45 Degrees
  • Specific Fitting Shape Short Nut
  • Fitting Connection Type Flared
  • Tube Size 1/4 in
See all product information

Product Information

Dimensions

Tube Size 1/4 in
Flare Thread Size 7/16-20
Hex Size 9/16 in
Overall Length 3/4 in
Compatible Tube Outer Diameter 1/4 in
Fitting Thread Size 7/16-20

Details

Item Short Nut
Tube Fitting Material Low Lead Brass
Flare Type 45 Degrees
Specific Fitting Shape Short Nut
Fitting Connection Type Flared
Max. Pressure 1400 psi
Temp. Range -65 Degrees To 250 Degrees F
Standards NSF/ANSI 61 Annex G
Basic Pipe Fitting Material Metal
Specific Pipe Fitting Shape Short Nut
Basic Pipe Fitting Shape Nut
Flare Angle 45 Degrees
Maximum Operating Pressure 1,400 psi
Fitting Material Brass
Minimum Operating Temperature 65 Degrees F
Maximum Operating Temperature 250 Degrees F
Compatible Auto Systems Domestic
Application Potable Water

Description

Short Nut, Application Potable Water, Fitting Thread Size 7/16-20, Flare Angle 45 Degrees , Fitting Material Brass, Hex Size 9/16 in, Maximum Operating Pressure 1,400 psi, Maximum Operating Temperature 250 Degrees F, Overall Length 3/4 in, Specific Fitting Shape Short Nut, Compatible Auto Systems Domestic, Compatible Tube Outer Diameter 1/4 in, Standards NSF/ANSI 61 Annex G, Fitting Connection Type Flared, Minimum Operating Temperature 65 Degrees F

Restrictions

  • WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
