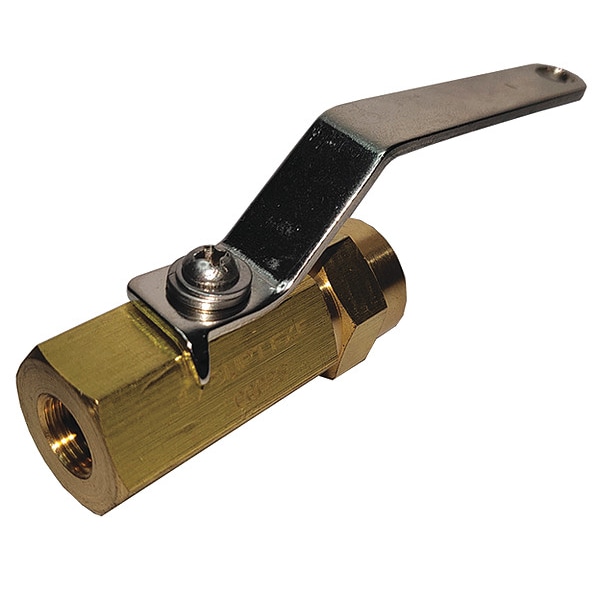

1/4" FNPT Brass Ball Valve Inline

product price: $16.19
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Material Brass
  • Body Style Inline
  • Max. Pressure 1000 psi CWP
  • Ball Material Brass
  • Stem Material brass
See all product information

Product Information

Dimensions

Pipe Size 1/4"
Overall Length 2.12 in
Connection Size - Side 2 1/4 in
Handle Height 1.11 in
Connection Size - Side 1 1/4 in
Nominal Valve Size 1/4 in
Handle Length 2.83 in

Details

Body Material Brass
Body Style Inline
Max. Pressure 1000 psi CWP
Ball Material Brass
Stem Material brass
Valve Structure 2-Piece
Connection Type FNPT x FNPT
Seat Material PTFE
Handle Material Steel
Ball Valve Product Group Manual
Temp. Range -40 Degrees to 300 Degrees F
Port Full
Handle Type Lever
Stem Type Blowout Proof
Ball Valve Basic Body Material Brass
Item Ball Valve
Seal Material PTFE
Connection FNPT
Type Two Piece
Material of Construction Forged Brass
Sub-Category Brass Ball Valves
Cleaned and Bagged Not Cleaned and Bagged
Handle - Locking Non-Locking
Maximum Pressure - Operating 1,000 psi
Valve Ways 2-Way
Color - Valve Handle Silver
Connection Type - Side 1 NPT
Connection Gender - Side 2 Female
3-A Standard Compliance Not Rated
Maximum Pressure - Steam 150 psi
For Media Air, Oil, Steam, Water
Manufacturer Warranty 3 yr
Valve Construction Two-Piece
Vacuum Service Rating 29.9 in Hg
Valve Body Style Straight
Operating Temperature - Maximum 300 Degrees F
Connection Gender - Side 1 Female
Coefficient of Volume (Cv) 8.23
Ball Port Style Full Port
Operating Temperature - Minimum -40 Degrees F
Vented Ball Valve Non-Vented
Color - Valve Body Brass
Connection Type - Side 2 NPT

Description

Manual Two-Way Ball Valve, Body Material Brass, For Media Air, Oil, Steam, Water, Valve Construction Two-Piece, Nominal Valve Size 1/4 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 1,000 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Applicable, Vacuum Service Rating 29.9 in Hg, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle - Locking Non-Locking

Restrictions

  • WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
