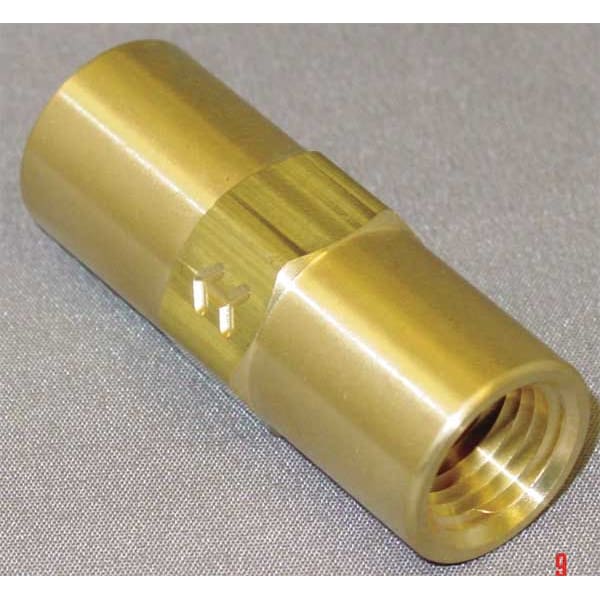

1/4" FNPT Brass Piston Spring Check Valve

  • Mfr # CHK BRS 415-4F4F-F
  • Zoro # G1925332
product price:
$
25.19
/ea

Key Features

Pipe Size
1/4"
Hex Size
11/16 in
Connection Type
FNPT
Connection
FNPT
Body Material
Brass
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CHK BRS 415-4F4F-F
Zoro #
G1925332
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size
1/4"
Hex Size
11/16 in
Overall Height
11/16 in
Width
11/16 in
Length
1 25/32 in
Size
1/4"
Pipe or Tube Size - Check Valves
1/4 in
Overall Length
1.8 in
Pipe or Tube Size
1/4 in
Height - Cap to Inlet Center
7 7/16 in
Connection Size - Side 2
1/4 in
Nominal Valve Size
1/4 in
Connection Size - Side 1
1/4 in
Wire Rope Length
1.8 in

Details

Connection Type
FNPT
Connection
FNPT
Body Material
Brass
Sub-Category
Brass
Application - Valves
General Purpose
Max. Temp. - Valves
180 Degrees F
Mechanism and Body Design
Inline Piston
Full Flow - Valves
Yes
Cap to Inlet Center
7 13/32 in
Min. Temp. - Valves
-20 Degrees F
Max. Steam Pressure - Valves
Not Rated
Cracking Pressure
1 psi
Seal Material - Check Valves
Viton
Max. Temp.
180 Degrees F
Cracking Pressure - Check Valves
1.0 psi
Mounting Orientation - Check Valves
Horizontal, Vertical
Item
Piston Spring Check Valve
Max. Pressure
500 psi
Spring Material - Check Valves
Stainless Steel
Seal Material
FKM
Seat Material
Brass
Material of Construction
Brass
Max. Water Pressure
500 psi
Item - Check Valves
Check Valve
Seat Material - Check Valves
Brass
Max. Water Pressure - Valves
500 psi
Mounting Position
Vertical or Horizontal
Flow Design
Single
Connection Type - Check Valves
FNPT x FNPT
Body Material - Valves
Brass
Standards
UL, UR
Mounting Orientation
Horizontal, Vertical
Seal
TFE, Carbon Filled
Type
Piston Design
Operating Temperature - Maximum
180 Degrees F
Valve Body Style
Inline
Vacuum Service Rating
Not Rated
Connection Gender - Side 2
Female
Silent Check
Standard
Connection Type - Side 2
NPT
Check Mechanism Material
Brass
Coefficient of Volume (Cv)
1.2
Operating Temperature - Minimum
-20 Degrees F
3-A Standard Compliance
Not Rated
Check Mechanism
Piston
For Media
Air, Fluids
Maximum Pressure - Operating
500 psi
Connection Gender - Side 1
Female
Maximum Pressure - Steam
Not Rated
Connection Type - Side 1
NPT
Valve Series
415

Description

ZORO SELECT 415 series 1/4 in FNPT brass piston spring check valve is an inline valve for air and compatible fluid service. Its spring-loaded piston is intended for one-way flow applications and to limit reverse flow when flow slows or reverses. The valve features a brass body, brass seat, and brass check mechanism with a stainless steel spring, and it supports horizontal or vertical mounting.

Key Features:

  • 1/4 in valve size with FNPT x FNPT female NPT connections on both ends
  • Inline piston design with single-flow configuration
  • Brass body, brass seat, and brass check mechanism
  • Viton/FKM with TFE, carbon-filled seal
  • 1 psi cracking pressure
  • Maximum operating pressure and maximum water pressure: 500 psi
  • Operating temperature range: -20 degrees F to 180 degrees F
  • Cv rating: 1.2
  • Overall length: 1.8 in; length: 1 25/32 in; hex size: 11/16 in
  • UL and UR listed
