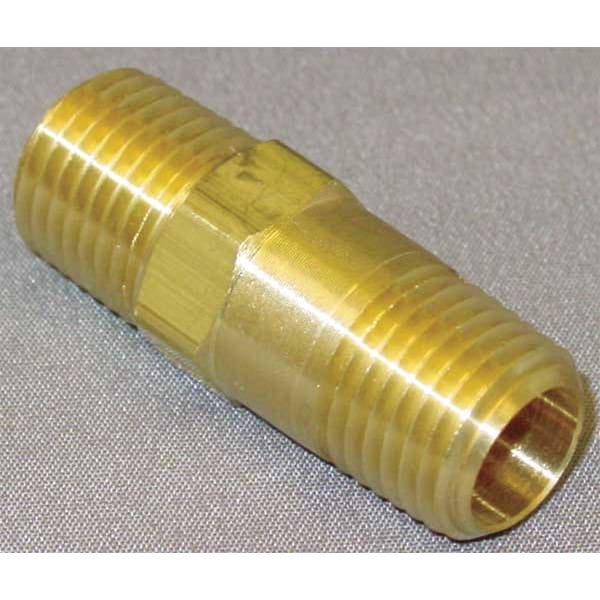

1/4" MNPT Brass Piston Spring Check Valve
Mfr # CHK BRS 410-4M4M-B
Zoro # G1671415
product price:Â
$
20.39
/ea
Key Features
Pipe Size
1/4"
Hex Size
9/16 in
Connection Type
MNPT
Connection
MNPT
Body Material
Brass
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CHK BRS 410-4M4M-B
- Zoro #
- G1671415
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Pipe Size
- 1/4"
- Hex Size
- 9/16 in
- Length
- 1/2"
- Width
- 0.56"
- Overall Height
- 9/16"
- Pipe or Tube Size - Check Valves
- 1/4"
- Size
- 1/4"
- Overall Length
- 1.63 in
- Pipe or Tube Size
- 1/4 in
- Connection Size - Side 1
- 1/4 in
- Connection Size - Side 2
- 1/4 in
- Nominal Valve Size
- 1/4 in
- Height - Cap to Inlet Center
- 4 5/8 in
- Wire Rope Length
- 1.63 in
Description
Zoro Select 410 series piston spring check valve with an inline, single-flow design and a spring-loaded brass piston. It is intended to permit flow in one direction and close when flow slows or reverses. Intended for general purpose air and fluid applications within the listed pressure, temperature, connection, and material specifications, this valve is intended for backflow control in compatible piping systems. The brass body, brass seat, Buna-N seal, and stainless steel spring are configured for 1/4 in NPT threaded connections.
Key Features:
- Valve type: Piston spring check valve with inline piston mechanism and single-flow design.
- Connection size and style: 1/4 in. MNPT x MNPT with male NPT connections on both ends.
- Materials: Brass body, brass check mechanism, brass seat, Buna-N seal, and stainless steel spring.
- Cracking pressure: 1 psi.
- Pressure rating: 500 psi maximum operating and water pressure.
- Temperature range: -20 degrees F to 180 degrees F.
- Mounting orientation: Horizontal or vertical.
- Flow capacity: Cv 0.6; full flow: Yes.
- Dimensions: 1.63 in. overall length, 1/2 in. length, 9/16 in. width, 9/16 in. overall height, and 9/16 in. hex size.
- Standards: UL, UR.
Restrictions
