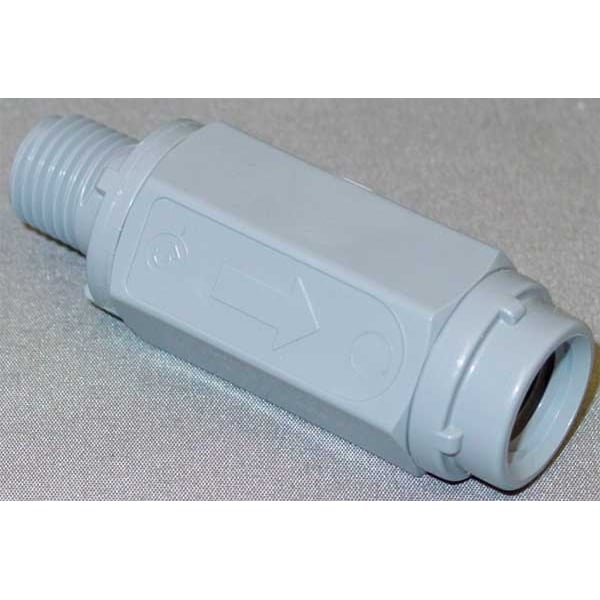

1/4" MNPT x FNPT Gray PVC Ball Cone Spring Check Valve

  • Mfr # PVC CHK 426-4M4F-B
  • Zoro # G1407725
product price:
$
18.19
/ea

Key Features

Pipe Size
1/4"
Hex Size
1 in
Connection Type
MNPT x FNPT
Connection
MPT x FPT
Body Material
PVC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PVC CHK 426-4M4F-B
Zoro #
G1407725
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size
1/4"
Hex Size
1 in
Size
1/4"
Pipe or Tube Size - Check Valves
1/4 in
Width
1 in
Overall Height
1 in
Length
2 29/32 in
Overall Length
2.99 in
Pipe or Tube Size
1/4 in
Nominal Valve Size
1/4 in
Connection Size - Side 1
1/4 in
Connection Size - Side 2
1/4 in
Wire Rope Length
2.99 in

Details

Connection Type
MNPT x FNPT
Connection
MPT x FPT
Body Material
PVC
Cracking Pressure - Check Valves
1.0 psi
Mechanism and Body Design
Inline Ball Cone
Cracking Pressure
1 psi
Mounting Position
Vertical or Horizontal
Sub-Category
PVC
Seat Material
PVC
Item - Check Valves
Check Valve
Max. Steam Pressure - Valves
Not Rated
Item
Ball Cone Spring Check Valve
Flow Design
Single
Spring Material - Check Valves
Stainless Steel
Spring Material
Hastelloy
Max. Pressure
125 psi
Body Material - Valves
PVC
Max. Water Pressure - Valves
125 psi
Max. Water Pressure
125 psi
Full Flow - Valves
Yes
Seat Material - Check Valves
PVC
Mounting Orientation - Check Valves
Horizontal, Vertical
Max. Temp. - Valves
140 Degrees F
Min. Temp. - Valves
-20 Degrees F
Max. Temp.
140 Degrees F
Seal Material - Check Valves
Buna-N
Seal Material
Buna-N
Material of Construction
PVC
Connection Type - Check Valves
MNPT x FNPT
Application - Valves
General Purpose
Standards
NSF 42
Mounting Orientation
Horizontal, Vertical
Seal
Buna
Valve Body Style
Inline
Operating Temperature - Maximum
140 Degrees F
For Media
Chemicals
Connection Type - Side 2
NPT
Connection Type - Side 1
NPT
Check Mechanism Material
Stainless Steel
Connection Gender - Side 2
Female
Maximum Pressure - Operating
125 psi
Connection Gender - Side 1
Male
3-A Standard Compliance
Not Rated
Silent Check
Standard
Operating Temperature - Minimum
-20 Degrees F
Maximum Pressure - Steam
Not Rated
Check Mechanism
Ball
Vacuum Service Rating
Not Rated
Valve Series
426

Description

ZORO SELECT 426 series ball cone spring check valve is an inline valve for one-way flow applications with spring-assisted check mechanism. It features a PVC body, a ball check mechanism, and is constructed with a PVC body and Buna-N seal material. The 1/4 in valve size with MNPT x FNPT threaded connections supports horizontal or vertical installation.

Key Features:

  • Valve type: Ball cone spring check valve with inline body design
  • Body material: PVC
  • Check mechanism: Ball with stainless steel mechanism components
  • Connection size: 1/4 in x 1/4 in
  • Connection type: MNPT x FNPT, NPT threaded
  • Cracking pressure: 1 psi
  • Pressure rating: 125 psi maximum operating/water pressure
  • Temperature range: -20 degrees F to 140 degrees F
  • Seal material: Buna-N
  • Seat material: PVC
  • Spring material: Hastelloy
  • Full flow: Yes
  • Mounting orientation: Horizontal or vertical
  • Standards: NSF 42
  • Overall dimensions: 2.99 in L x 1 in H x 1 in W
