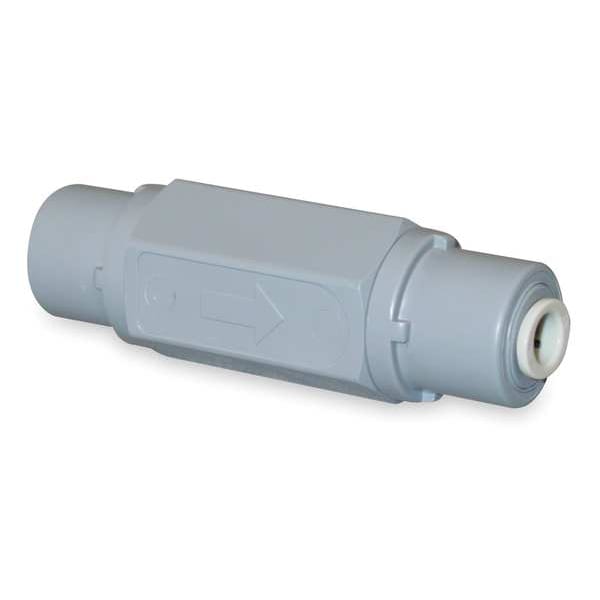

1/4" Push Gray PVC Ball Cone Spring Check Valve

  • Mfr # PVC CHK 426-4SMC4SMC-B
  • Zoro # G2108224
product price:
$
23.49
/ea

Key Features

Pipe Size
1/4"
Hex Size
1 in
Connection Type
Push to Connect
Connection
Push
Body Material
PVC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PVC CHK 426-4SMC4SMC-B
Zoro #
G2108224
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size
1/4"
Hex Size
1 in
Length
3 7/16 in
Overall Height
1 in
Size
1/4"
Pipe or Tube Size - Check Valves
1/4 in
Width
1 in
Overall Length
3.44 in
Pipe or Tube Size
1/4 in
Connection Size - Side 2
1/4 in
Nominal Valve Size
1/4 in
Connection Size - Side 1
1/4 in
Wire Rope Length
3.44 in

Details

Connection Type
Push to Connect
Connection
Push
Body Material
PVC
Mounting Position
Vertical or Horizontal
Seal Material - Check Valves
Buna-N
Item
Ball Cone Spring Check Valve
Mechanism and Body Design
Inline Ball Cone
Flow Design
Single
Full Flow - Valves
Yes
Mounting Orientation - Check Valves
Horizontal, Vertical
Material of Construction
PVC
Seat Material
PVC
Sub-Category
PVC
Spring Material - Check Valves
Stainless Steel
Cracking Pressure - Check Valves
1.0 psi
Max. Temp. - Valves
140 Degrees F
Body Material - Valves
PVC
Spring Material
Stainless Steel
Max. Water Pressure
125 psi
Seal Material
Buna-N
Cracking Pressure
1 psi
Seat Material - Check Valves
PVC
Max. Temp.
140 Degrees F
Min. Temp. - Valves
-20 Degrees F
Connection Type - Check Valves
Push x Push
Max. Water Pressure - Valves
125 psi
Max. Pressure
125 psi
Item - Check Valves
Check Valve
Max. Steam Pressure - Valves
Not Rated
Application - Valves
General Purpose
Mounting Orientation
Horizontal, Vertical
Seal
Buna
Type
Ball Cone Design
Valve Body Style
Inline
Connection Type - Side 2
Push
Connection Type - Side 1
Push
3-A Standard Compliance
Not Rated
Silent Check
Standard
Maximum Pressure - Operating
125 psi
For Media
Water
Maximum Pressure - Steam
Not Rated
Operating Temperature - Maximum
140 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Vacuum Service Rating
Not Rated
Check Mechanism
Ball

Description

Zoro Select 426-4SMC4SMC-B is a 1/4 in inline ball cone spring check valve with push-to-connect ends on both sides. It is designed for general-purpose water service and is configured for one-direction flow and check-valve closure when flow stops or reverses. The PVC body, PVC seat, Buna-N seal, and stainless steel spring provide a valve assembly with the listed dimensions for systems specified for 1 psi cracking pressure and full-flow: Yes.

Key Features:

  • Valve type: Ball cone spring check valve with inline body design
  • Size: 1/4 in nominal valve size with 1/4 in connections on both ends
  • Connections: Push x Push, push-to-connect style
  • Body material: PVC
  • Check mechanism: Ball
  • Seal material: Buna-N
  • Seat material: PVC
  • Spring material: Stainless steel
  • Cracking pressure: 1 psi
  • Flow design: Single; full flow: Yes
  • Mounting orientation: Horizontal or vertical
  • Maximum operating pressure: 125 psi
  • Temperature range: -20 Degrees F to 140 Degrees F
  • Overall size: 3.44 in overall length, 1 in overall height, 1 in width
  • Hex size: 1 in
