CAD Drawings

Download CAD Files

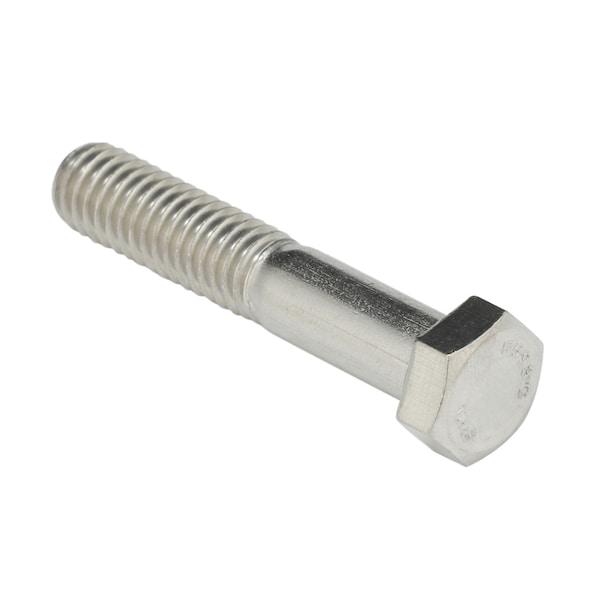

18-8, 3/8"-16 Hex Head Cap Screw, Plain Stainless Steel, 2 in L, 25 PK

  • Mfr # U51000.037.0200

  • Zoro # G2579832

CAD Available

product price: $14.29
/pk 25, $0.57/ea

Key Features

External Hex Drive
18-8 Material Grade/Class
CAD Drawing
System of Measurement
Inch
Thread Size
3/8"-16
Head Width
9/16 in
Material
Stainless Steel
Finish
Plain
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
U51000.037.0200
Zoro #
G2579832
UPC #
-
Country of Origin
Multiple

Dimensions

Thread Size
3/8"-16
Fastener Length
2 in
Head Width
9/16 in
Head Height
15/64 in
Min. Thread Length
1 in

Details

CAD Available
Yes
System of Measurement
Inch
Drive
External Hex
Material Grade/Class
18-8
Material
Stainless Steel
Finish
Plain
Thread Style
Partially Threaded
Thread Direction
Right Hand
Standards
ASTM F593
Item
Hex Head Cap Screw
Tensile Strength
85,000 psi
Rockwell Hardness
HRB80
Thread Type
Coarse
Dimensional Standards
ASME B18.2.1
Thread Fit
2A
Threadlocker Minimum Temperature
3/8"-16
Globally Sourced
Globally Sourced
Manufacturer Location
Globally Sourced
Material Quality Standards
ASTM F593
Fastener Industry Standards
ASME B18.2.1

Description

The ZORO SELECT - U51000.037.0200 is a Hex Head Cap Screw, a type of fastener with a hexagonal-shaped head used in various industrial applications to securely join materials together. This screw adheres to the ASME B18.2.1 dimensional standards and requires an external hex drive for installation or removal.

  • Fastener Length: The screw has a length of 2 inches and is intended to be used as per the application's requirements.
  • Finish: The product features a plain finish. Its performance may vary based on its interaction with different environments or materials.
  • Globally Sourced: This product is sourced from various international manufacturers.
  • Material: Constructed using stainless steel. It's suitability in terms of strength, durability and corrosion resistance varies depending upon the specific industrial application.
  • Material Grade/Class: Adheres to the 18-8 standard indicating its strength, hardness and resistance properties.
  • Tensile Strength: Rated to handle up to 85,000 psi tensile stress under normal operating conditions.
  • Thread Direction & Size : Features right-hand thread direction that tightens clockwise; Comes with a thread size of 3/8"-16 which should be checked for compatibility before use."
