  11. 1/8" MNPT Brass Ball Valve Inline

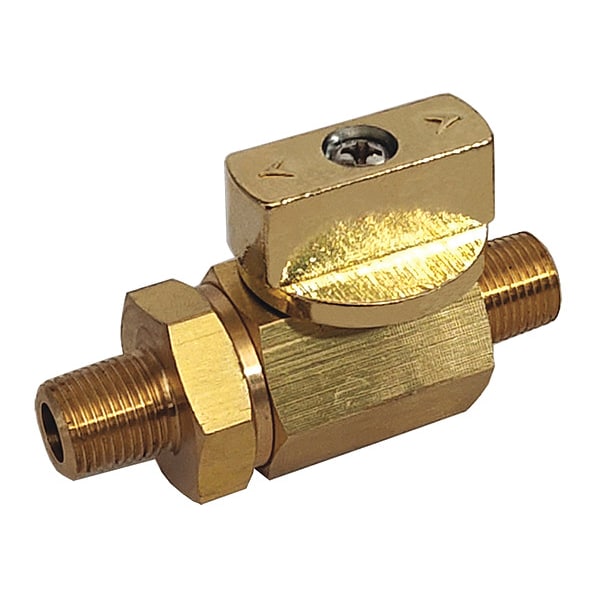

Zoro Select 1/8" MNPT Brass Ball Valve Inline G-BVRM-18M - main

1/8" MNPT Brass Ball Valve Inline

  • Mfr # G-BVRM-18M

  • Zoro # G1263482

product price: $13.15
/ea

Key Features

Ball Material
Brass
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
G-BVRM-18M
Zoro #
G1263482
UPC #
-
Country of Origin
China

Dimensions

Pipe Size
1/8 in
Overall Length
2.1 in
Connection Size - Side 2
1/8 in
Connection Size - Side 1
1/8 in
Nominal Valve Size
1/8 in

Details

Ball Material
Brass
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Air, Steam, Water
Connection Type
MNPT x MNPT
Item
Ball Valve
Stem Material
Brass
Stem Type
Blowout Proof
Seat Material
PTFE
Handle Type
Tee
Body Material
Brass
Handle Material
Steel
Temp. Range
-40 Degrees to 300 Degrees F
Max. Pressure
1,000 PSI CWP
Ball Valve Product Group
Manual
Seal Material
PTFE
Type
Two Piece
Maximum Pressure - Steam
150 WSP
Color - Valve Handle
Brass
Maximum Pressure - Combustible Gas
Not Rated
Operating Temperature - Minimum
-40 Degrees F
Vented Ball Valve
Non-Vented
Connection Type - Side 1
NPT
Vacuum Service Rating
29.9 in Hg
Connection Gender - Side 2
Male
Connection Gender - Side 1
Male
Operating Temperature - Maximum
300 Degrees F
Handle - Locking
Non-Locking
Coefficient of Volume (Cv)
6
Connection Type - Side 2
NPT
3-A Standard Compliance
Not Rated

Description

Manual Two-Way Ball Valve, Body Material Brass, For Media Air, Steam, Water, Valve Construction Two-Piece, Nominal Valve Size 1/8 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 1,000 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29.9 in Hg, Ball Material Brass, Ball Port Style Full Port, Handle - Locking Non-Locking, Handle Type Tee

Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
