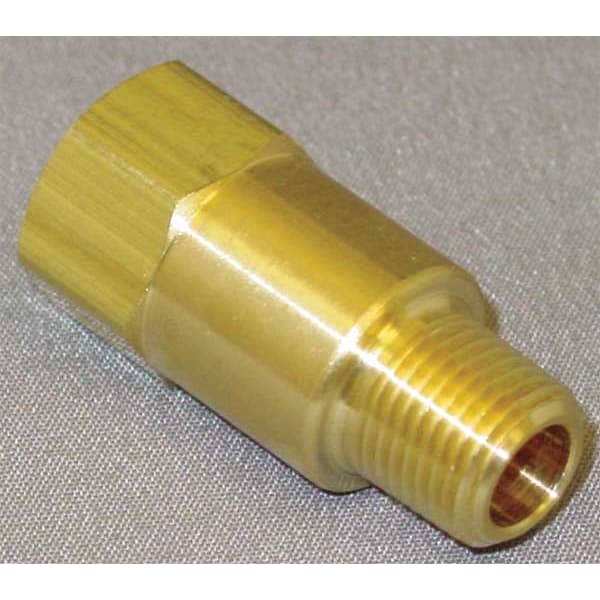

1/8" MNPT x FNPT Brass Piston Spring Check Valve

  • Mfr # CHK BRS 210-2M2F-B

  • Zoro # G1618994

product price:
$
20.39
/ea

Key Features

Pipe Size
1/8"
Hex Size
9/16 in
Connection Type
MNPT x FNPT
Connection
MNPT x FNPT
Body Material
Brass
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
CHK BRS 210-2M2F-B
Zoro #
G1618994
UPC #
-
Country of Origin
United States
Connection Type
MNPT x FNPT
Connection
MNPT x FNPT
Body Material
Brass
Cracking Pressure
1 psi
Seat Material - Check Valves
Brass
Material of Construction
Brass
Mounting Position
Vertical or Horizontal
Item - Check Valves
Check Valve
Seal Material - Check Valves
Buna-N
Flow Design
Single
Mounting Orientation - Check Valves
Horizontal, Vertical
Spring Material - Check Valves
Stainless Steel
Cracking Pressure - Check Valves
1.0 psi
Mechanism and Body Design
Inline Piston
Seat Material
Brass
Full Flow - Valves
Yes
Item
Piston Spring Check Valve
Body Material - Valves
Brass
Max. Temp.
180 Degrees F
Max. Pressure
500 psi
Sub-Category
Brass
Cap to Inlet Center
2 5/16 in
Max. Temp. - Valves
180 Degrees F
Application - Valves
General Purpose
Max. Water Pressure - Valves
500 psi
Max. Steam Pressure - Valves
Not Rated
Seal Material
Buna-N
Min. Temp. - Valves
-20 Degrees F
Max. Water Pressure
500 psi
Connection Type - Check Valves
MNPT x FNPT
Standards
UL, UR
Mounting Orientation
Horizontal, Vertical
Seal
Buna
Type
Piston Design
Valve Body Style
Inline
Maximum Pressure - Steam
Not Rated
Connection Gender - Side 1
Male
Operating Temperature - Maximum
180 Degrees F
Maximum Pressure - Operating
500 psi
Connection Type - Side 2
NPT
Coefficient of Volume (Cv)
0.2
Connection Type - Side 1
NPT
Silent Check
Standard
Check Mechanism
Piston
Check Mechanism Material
Brass
Connection Gender - Side 2
Female
For Media
Air, Fluids
3-A Standard Compliance
Not Rated
Vacuum Service Rating
Not Rated
Operating Temperature - Minimum
-20 Degrees F
Valve Series
210

Description

ZORO SELECT Series 210 piston spring check valve is an inline, single-flow valve for air and fluid service within the specified pressure and temperature ratings. It uses a spring-loaded brass piston to allow flow in one direction and closes at 1 psi cracking pressure for single-direction flow applications. The brass body has 1/8 in. NPT connections with a male inlet and female outlet, and it can be mounted horizontally or vertically.

Key Features:

  • Valve type: Piston spring check valve with inline piston design
  • Body and internal materials: Brass body, brass check mechanism, brass seat, stainless steel spring, Buna-N seal
  • Connections: 1/8 in. MNPT x FNPT; side 1 male NPT, side 2 female NPT
  • Pressure rating: 500 psi maximum operating/water pressure
  • Cracking pressure: 1 psi
  • Temperature range: -20 degrees F to 180 degrees F
  • Flow characteristics: Single-flow design, full flow, Cv 0.2
  • Mounting orientation: Horizontal or vertical
  • Dimensions: 1 1/16 in. length, 9/16 in. overall height and width, 9/16 in. hex size, 2 5/16 in. cap to inlet center
  • Standards: UL, UR
