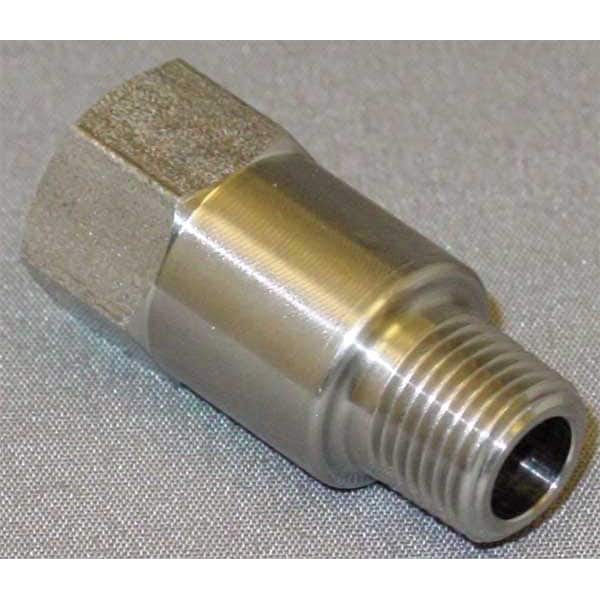

1/8" MNPT x FNPT Stainless Steel Piston Spring Check Valve

  • Mfr # CHK SST 210-2M2F-B

  • Zoro # G3431057

product price:
$
31.39
/ea

Key Features

Pipe Size
1/8"
Hex Size
9/16 in
Connection Type
MNPT x FNPT
Connection
MNPT x FNPT
Body Material
Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
CHK SST 210-2M2F-B
Zoro #
G3431057
UPC #
-
Country of Origin
United States
Connection Type
MNPT x FNPT
Connection
MNPT x FNPT
Body Material
Stainless Steel
Mechanism and Body Design
Inline Piston
Max. Pressure
500 psi
Full Flow - Valves
Yes
Max. Water Pressure
500 psi
Spring Material - Check Valves
Stainless Steel
Cracking Pressure
1 psi
Max. Water Pressure - Valves
500 psi
Cracking Pressure - Check Valves
1.0 psi
Cap to Inlet Center
4 5/8 in
Max. Temp.
180 Degrees F
Spring Material
Stainless Steel
Flow Design
Single
Min. Temp. - Valves
-20 Degrees F
Application - Valves
General Purpose
Seat Material
Stainless Steel
Body Material - Valves
Stainless Steel
Mounting Orientation - Check Valves
Horizontal, Vertical
Max. Steam Pressure - Valves
Not Rated
Max. Temp. - Valves
180 Degrees F
Material of Construction
stainless steel
Sub-Category
Stainless Steel
Seal Material
Buna-N
Seat Material - Check Valves
Stainless Steel
Connection Type - Check Valves
MNPT x FNPT
Item
Piston Spring Check Valve
Mounting Position
Vertical or Horizontal
Seal Material - Check Valves
Buna-N
Item - Check Valves
Check Valve
Standards
UL, UR
Mounting Orientation
Horizontal, Vertical
Seal
Buna
Type
Piston Design
3-A Standard Compliance
Not Rated
Connection Type - Side 2
NPT
Connection Gender - Side 2
Female
Silent Check
Standard
Maximum Pressure - Steam
Not Rated
Operating Temperature - Minimum
-20 Degrees F
Valve Body Style
Inline
Vacuum Service Rating
Not Rated
Connection Type - Side 1
NPT
Operating Temperature - Maximum
180 Degrees F
For Media
Air, Fluids
Check Mechanism
Piston
Coefficient of Volume (Cv)
0.2
Connection Gender - Side 1
Male
Check Mechanism Material
Stainless Steel
Maximum Pressure - Operating
500 psi
Valve Series
210

Description

This stainless steel piston spring check valve is an inline, single-flow valve for air and fluid applications compatible with the valve materials and specified operating ranges. It uses a spring-loaded piston to allow flow in one direction and closes at 1 psi cracking pressure to reduce reverse flow in piping systems. The valve has 1/8 in. MNPT x FNPT connections and can be mounted horizontally or vertically.

Key Features:

  • Valve type: Piston spring check valve with inline piston design
  • Body material: Stainless steel
  • Check mechanism, seat, and spring material: Stainless steel
  • Seal material: Buna-N
  • Connection size and type: 1/8 in. MNPT x FNPT
  • Flow design: Single; full flow: Yes
  • Cracking pressure: 1 psi
  • Maximum operating pressure: 500 psi
  • Operating temperature range: -20 degrees F to 180 degrees F
  • Mounting orientation: Horizontal or vertical
  • Cv: 0.2
  • Standards: UL, UR
  • Valve series: 210
