This item is Discontinued.

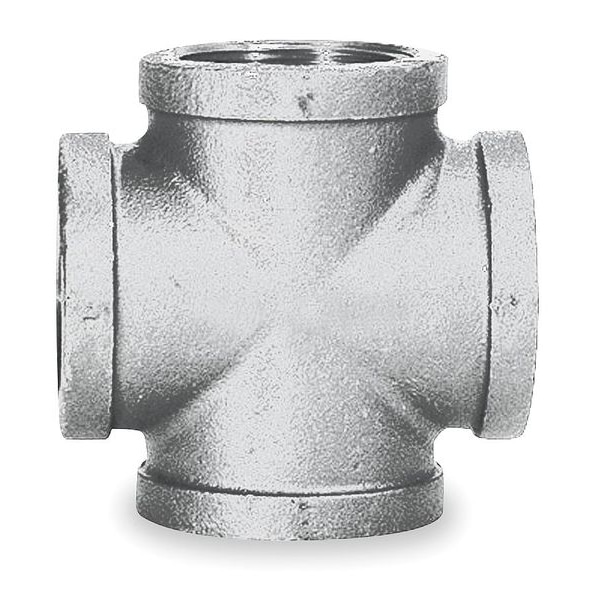

Zoro Select 2-1/2" FNPT Galvanized Cross 511-009BC

2-1/2" FNPT Galvanized Cross (Discontinued)

  • Mfr # 511-009BC
  • Zoro # G0445557
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
511-009BC
Zoro #
G0445557
UPC #
032888360884
Country of Origin
China

Dimensions

Pipe Size - Pipe Fitting
2-1/2"
Pipe Size (Fittings)
2-1/2"
Fitting Side A Nominal Pipe Size
2 1/2 in
Fitting Side D Outside Diameter
3 9/16 in
Fitting Pipe Size
2 1/2 in x 2 1/2 in x 2 1/2 in x 2 1/2 in
Fitting Side D Nominal Pipe Size
2 1/2 in
Fitting Side C Outside Diameter
3 9/16 in
Fitting Side B Outside Diameter
3 9/16 in
Fitting Side A Outside Diameter
3 9/16 in
Overall Length
5 5/16 in
Fitting Side C Nominal Pipe Size
2 1/2 in
Pipe Size
2 1/2 in
Fitting Side B Nominal Pipe Size
2 1/2 in

Details

Item
Cross
Pipe Fitting Material
Galvanized Malleable Iron
Specific Fitting Shape
Cross
Basic Pipe Fitting Material
Metal
Fitting Schedule/Class
Class 150
Basic Pipe Fitting Shape
Cross
Fitting Connection Type
FNPT
Standards
ANSI B1.20.1 Specifications
Max. Pressure
300 psi @ 150 Degrees F WOG
Saturated Steam Pressure
150 PSI
Specific Pipe Fitting Shape
Cross
Temp. Range
-20 Degrees to 150 Degrees F
Pipe Fitting Connection Type
NPT x NPT x NPT x NPT
Pipe Fitting Schedule/Class
Class 150
For Pipe Schedule
40
Fitting Side B Pipe Threading
8
Includes Seal
No
Fitting Shape
Cross
Fitting Side C Type
NPT
Fitting Side C Pipe Threading
8
Finish/Coating
Galvanized
Threading
NPT
Fitting Side D Type
NPT
Includes Pre-Applied Thread Sealant
No
Gender
Female
Pipe Fitting Gender
Female Female Female Female
Max. Steam Pressure
150 psi
Connection Type
Threaded
Color
Gray
Fitting Side A Pipe Threading
8
Fitting Side C Gender
Female
Fitting Side D Pipe Threading
8
Pressure Level
Medium Pressure (300-999 psi)
Fitting Side A Gender
Female
Fitting Side D Gender
Female
Fitting Side B Gender
Female
Fitting Side A Type
NPT
Class
Class 150
Fitting Side B Type
NPT
Application
Air, Natural Gas, Oil, Potable Water, Steam

Description

Cross, Malleable Iron, Galvanized, Class Class 150, For Pipe Schedule 40, 2 1/2 in, Female, NPT, 3 9/16 in, 8, 2 1/2 in, Female, NPT, 3 9/16 in, 8, 2 1/2 in, Female, NPT, 3 9/16 in, 8, 2 1/2 in, Female, NPT, 3 9/16 in, 8
