  11. 2" FNPT Stainless Steel Ball Valve Inline
Shop All Ball Valves
No Product Image Available
Zoro Select

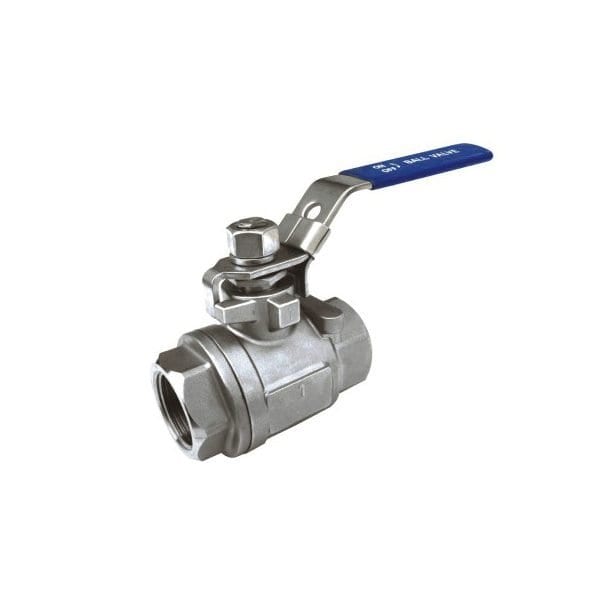

2" FNPT Stainless Steel Ball Valve Inline

original price: $230.27
37% off
new price: $143.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Material 316 Stainless Steel
  • Body Style Inline
  • Ball Valve Basic Body Material Stainless Steel
  • Stem Material 316 stainless steel
  • Standards ASTM A351-CF8M
See all product information

Product Information

Dimensions

Pipe Size 2"
Overall Length 4.8 in
Connection Size - Side 2 2 in
Connection Size - Side 1 2 in
Handle Length 7.44 in
Nominal Valve Size 2 in

Details

Body Material 316 Stainless Steel
Body Style Inline
Ball Valve Basic Body Material Stainless Steel
Stem Material 316 stainless steel
Standards ASTM A351-CF8M
Stem Type Blowout Proof
Valve Structure 2-Piece
Handle Material Stainless Steel with Vinyl Grip
Item Ball Valve
Temp. Range -25 Degrees to 450 Degrees F
Ball Valve Product Group Manual
Connection Type FNPT x FNPT
Handle Type Locking Lever
Seat Material PTFE
Max. Pressure 1000 psi CWP
Features 4-29/32 in Overall Length
Ball Material 316 stainless steel
Port Full
Seal Material PTFE
Connection FNPT
Type Two Piece
Sub-Category Steel Ball Valves
Material of Construction 316 Stainless Steel
Valve Construction Two-Piece
For Media Combustible Gases, Water
Connection Type - Side 1 NPT
Valve Ways 2-Way
3-A Standard Compliance Not Rated
Handle - Locking Locking
Valve Body Style Straight
Operating Temperature - Minimum -25 Degrees F
Ball Port Style Full Port
Connection Gender - Side 1 Female
Connection Type - Side 2 NPT
Maximum Pressure - Combustible Gas Not Rated
Operating Temperature - Maximum 450 Degrees F
Maximum Pressure - Steam 1,000 psi
Color - Valve Handle Yellow
Vented Ball Valve Non-Vented
Maximum Pressure - Operating 1,000 psi
Connection Gender - Side 2 Female

Description

Manual Two-Way Ball Valve, Body Material 316 Stainless Steel, For Media Combustible Gases, Water, Valve Construction Two-Piece, Nominal Valve Size 2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 1,000 psi, Maximum Pressure - Steam 1,000 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Applicable, Ball Material 316 Stainless Steel, Ball Port Style Full Port
