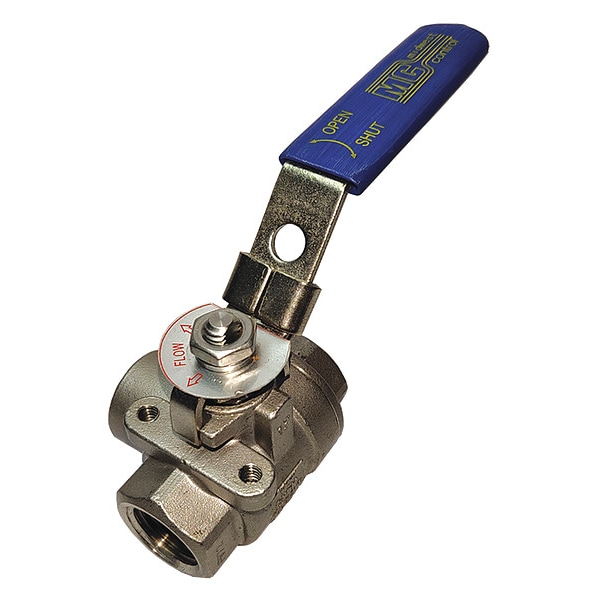

2" FNPT Stainless Steel Ball Valve Inline

  • Mfr # G-SSTW-200

  • Zoro # G4976991


product price: $482.99
/ea
Free Shipping & Returns

Key Features

Ball Material
316 stainless steel
Body Style
3-Way
Ball Port Style
Standard Port
Valve Ways
3-Way
Valve Structure
Two-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
G-SSTW-200
Zoro #
G4976991
UPC #
00190735463338
Country of Origin
China

Dimensions

Pipe Size
2 in
Outlet Connection Size - Side 2
2 in
Outlet Connection Size - Side 1
2 in
Nominal Valve Size
2 in
Connection Size - Side 1
2 in

Details

Ball Material
316 stainless steel
Body Style
3-Way
Ball Port Style
Standard Port
Valve Ways
3-Way
Valve Structure
Two-Piece
For Media
Steam, Water
Connection Type
FNPT x FNPT x FNPT
Item
Ball Valve
Stem Material
Stainless Steel
Body Material
Stainless Steel
Seat Material
RPTFE
Handle Material
304 Stainless Steel
Handle Type
Lever
Stem Type
Blowout Proof
Standards
ASTM A351, MSS SP-110
Max. Pressure
1,000 PSI CWP
Temp. Range
-20 Degrees to 450 Degrees F
Ball Valve Product Group
Manual
Seal Material
RPTFE
Type
Two Piece
Maximum Pressure - Combustible Gas
Not Rated
Outlet Connection Gender - Side 1
Female
Coefficient of Volume (Cv)
108
Color - Valve Handle
Black
Vented Ball Valve
Non-Vented
Operating Temperature - Minimum
-20 Degrees F
Outlet Connection Gender - Side 2
Female
Outlet Connection Type - Side 1
NPT
Handle - Locking
Locking
3-A Standard Compliance
Not Rated
Inlet Connection Entry
Side
Operating Temperature - Maximum
450 Degrees F
Flow Pattern
L Flow
Vacuum Service Rating
29.9 in Hg
Maximum Pressure - Steam
150 PSI WSP
Outlet Connection Type - Side 2
NPT
Connection Gender - Side 1
Female
Connection Type - Side 1
NPT

Description

Manual Three-Way Ball Valve, Body Material 316 Stainless Steel, Valve Construction Two-Piece, Average Surface Roughness (Ra) Not Applicable, Flow Pattern L Flow, 3-A Standard Compliance Not Rated, Ball Port Style Standard Port, Nominal Valve Size 2 in, Inlet Connection Size 2 in, Inlet Connection Gender Female, Inlet Connection Type NPT, Inlet Connection Entry Side, ANSI Flange Class Not Applicable, Outlet Connection Size - Side 1 2 in, Outlet Connection Gender - Side 1 Female
