  11. 2" FNPT x MNPT Brass Ball Valve Inline
Zoro Select 2" FNPT x MNPT Brass Ball Valve Inline 107-328 - main

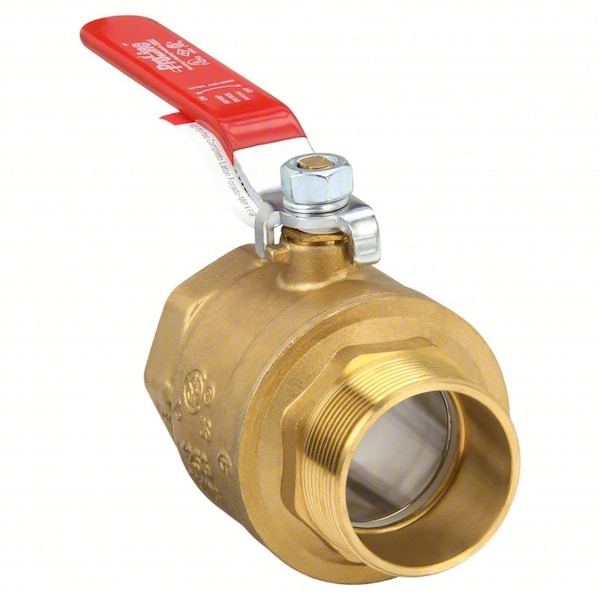

2" FNPT x MNPT Brass Ball Valve Inline

  • Mfr # 107-328

  • Zoro # G1417367

product price: $82.99
/ea
Free Shipping & Returns

Key Features

Ball Material
304 Stainless Steel
Body Style
Inline
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
107-328
Zoro #
G1417367
UPC #
-
Country of Origin
China

Dimensions

Pipe Size
2 in
Overall Length
8.17 in
Nominal Valve Size
2 in
Connection Size - Side 1
2 in
Connection Size - Side 2
2 in

Details

Ball Material
304 Stainless Steel
Body Style
Inline
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Combustible Gases, Steam, Water
Connection Type
FNPT x MNPT
Item
Ball Valve
Standards
ANSI Z21.15/CSA 9.1, ASME B16.33, ASME B16.44, FM 1140, MHKZ, YQNZ, YRBX, YRPV, YSDT
Ball Valve Product Group
Manual
Seat Material
PTFE
Max. Pressure
900 PSI CWP
Body Material
Brass
Temp. Range
-20 Degrees to 300 Degrees F
Hose I.D.
2 in
Handle Material
Chrome Plated Steel with Vinyl Grip
Stem Type
Blowout Proof
Handle Type
Lever
Stem Material
Brass
Seal Material
PTFE
Type
Two Piece
Maximum Pressure - Combustible Gas
Not Rated
Connection Gender - Side 2
Female
Vacuum Service Rating
-29.92 in Hg
Maximum Pressure - Steam
600 PSI CWP
Connection Type - Side 2
IPS
Connection Gender - Side 1
Male
Vented Ball Valve
Non-Vented
3-A Standard Compliance
Not Rated
Pipe Schedule Compatibility
Schedule 40, Schedule 80
Operating Temperature - Maximum
300 Degrees F
Connection Type - Side 1
IPS
Color - Valve Handle
Red
Handle - Locking
Non-Locking
Operating Temperature - Minimum
-20 Degrees F
Coefficient of Volume (Cv)
144.194
Valve Series
7700MF

Description

Manual Two-Way Ball Valve, Body Material Brass, For Media Combustible Gases, Steam, Water, Valve Construction Two-Piece, Nominal Valve Size 2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 600 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating -29.92 in Hg, Ball Material 304 Stainless Steel, Ball Port Style Standard Port

Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
