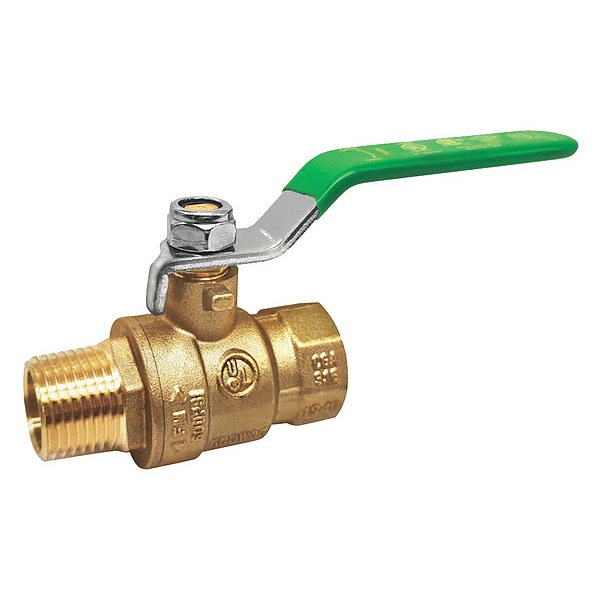

2" FNPT x MNPT Brass Ball Valve Inline

  • Mfr # 107-328NL

  • Zoro # G4975442

product price:  $86.29
/ea

Key Features

Ball Material
304 Stainless Steel
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
107-328NL
Zoro #
G4975442
UPC #
-
Country of Origin
China

Dimensions

Pipe Size
2 in
Overall Length
8.17 in
Connection Size - Side 2
2 in
Nominal Valve Size
2 in
Connection Size - Side 1
2 in

Details

Ball Material
304 Stainless Steel
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Combustible Gases, Steam, Water
Connection Type
FNPT x MNPT
Item
Ball Valve
Seat Material
PTFE
Handle Material
Steel
Standards
ANSI Z21.15/CGA 9.1, ASME B16.44, FM 1140, IAPMO/ANSI Z1157, NSF/ANSI 372, NSF/ANSI 61, YQNZ, YRBX
Handle Type
Lever
Body Material
Brass
Stem Material
Brass
Temp. Range
0 Degrees F to 365 Degrees F
Ball Valve Product Group
Manual
Stem Type
Blowout Resistant
Max. Pressure
600 PSI CWP
Seal Material
PTFE
Type
Two Piece
Maximum Pressure - Steam
600 psi
Connection Gender - Side 2
Female
Operating Temperature - Maximum
300 Degrees F
Vacuum Service Rating
-29.92 in Hg
Handle - Locking
Non-Locking
Maximum Pressure - Combustible Gas
Not Rated
NSF Certifications for Food and Drinking Water
NSF 61
3-A Standard Compliance
Not Rated
Coefficient of Volume (Cv)
144.194
Connection Type - Side 2
IPS
Vented Ball Valve
Non-Vented
Connection Gender - Side 1
Male
Operating Temperature - Minimum
-20 Degrees F
Connection Type - Side 1
IPS
Color - Valve Handle
Red
Valve Series
7700MF
Manufacturer Warranty
1 yr
Valve Body Style
Straight
Maximum Pressure - Operating
600 psi
Valve Construction
Two-Piece

Description

Manual Two-Way Ball Valve, Body Material Brass, For Media Combustible Gases, Steam, Water, Valve Construction Two-Piece, Nominal Valve Size 2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 600 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating -29.92 in Hg, Ball Material 304 Stainless Steel, Ball Port Style Full Port, Handle - Locking Non-Locking
