  11. 24pc. Bright 118 Degrees Drill Bit Set

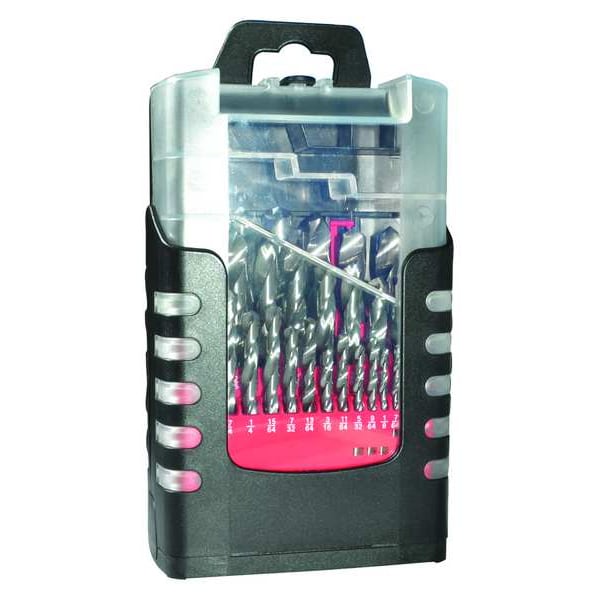

Zoro Select 24pc. Bright 118 Degrees Drill Bit Set 450-000024 - main

24pc. Bright 118 Degrees Drill Bit Set

  • Mfr # 450-000024

  • Zoro # G4337350

product price: $870.99
/ea
Free Shipping & Returns

Key Features

Number of Pieces
24
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
Carbide
Includes
1.0mm Twist Drill, 1.5mm Twist Drill, 10.0mm Twist Drill, 10.5mm Twist Drill, 11.0mm Twist Drill, 11.5mm Twist Drill, 12.5mm Twist Drill, 12mm Twist Drill, 2.0mm Twist Drill, 2.5mm Twist Drill, 3.0mm Twist Drill, 3.5mm Twist Drill, 4.0mm Twist Drill, 4.5mm Twist Drill, 5.0mm Twist Drill, 5.5mm Twist Drill, 6.0mm Twist Drill, 6.5mm Twist Drill, 7.0mm Twist Drill, 7.5mm Twist Drill, 8.0mm Twist Drill, 8.5mm Twist Drill, 9.0mm Twist Drill, 9.5mm Twist Drill
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
450-000024
Zoro #
G4337350
UPC #
888226263863
Country of Origin
United States

Dimensions

Drill Bit Dimension Type
Metric
Sizes Included
1.00mm, 1.50mm, 2.00mm, 2.50mm, 3.00mm, 3.50mm, 4.00mm, 4.50mm, 5.00mm, 5.50mm, 6.00mm, 6.50mm, 7.00mm, 7.50mm, 8.00mm, 8.50mm, 9.00mm, 9.50mm, 10.00mm, 10.50mm, 11.00mm, 11.50mm, 12.00mm, 12.50mm
Drill Bit Size
1 mm to 12.5 mm by 0.5 mm
Shank Dia.
1.00 to12.50 mm
Smallest Drill Bit Size
1 mm
Largest Drill Bit Size
12.5 mm
Drill Length Class
Jobber-Length
Drill Diameter Tolerance
+0.0000 in/-0.0005 in
Drill Bit Sizes Included
1 mm, 1.5 mm, 10 mm, 10.5 mm, 11 mm, 11.5 mm, 12 mm, 12.5 mm, 2 mm, 2.5 mm, 3 mm, 3.5 mm, 4 mm, 4.5 mm, 5 mm, 5.5 mm, 6 mm, 6.5 mm, 7 mm, 7.5 mm, 8 mm, 8.5 mm, 9 mm, 9.5 mm

Details

Item
Jobber Length Drill Bit Set
Number of Pieces
24
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
Carbide
Includes
1.0mm Twist Drill, 1.5mm Twist Drill, 10.0mm Twist Drill, 10.5mm Twist Drill, 11.0mm Twist Drill, 11.5mm Twist Drill, 12.5mm Twist Drill, 12mm Twist Drill, 2.0mm Twist Drill, 2.5mm Twist Drill, 3.0mm Twist Drill, 3.5mm Twist Drill, 4.0mm Twist Drill, 4.5mm Twist Drill, 5.0mm Twist Drill, 5.5mm Twist Drill, 6.0mm Twist Drill, 6.5mm Twist Drill, 7.0mm Twist Drill, 7.5mm Twist Drill, 8.0mm Twist Drill, 8.5mm Twist Drill, 9.0mm Twist Drill, 9.5mm Twist Drill
Point Type
Split Point
List Number
450
Drill Bit Grouping
Drill Bit Set
Standards
Not Rated
Finish - Machining
Bright (Uncoated)
Spiral Direction
Right Hand
Primary Material Application ISO Code
H, K, M, N, P
Web Thinning
Thinned
Coolant Fed
Non-Coolant Through
Helix Angle
25 Degrees
Flute Type
Spiral
Drill Bit Case Type
Box
Primary Material Application
Cast Iron, Steel
Aircraft Drill
No
Material Grade - Machining
C2
Web Construction
Split
Shank Type - Machining
Straight
Material - Machining
Carbide
Number of Drill Bits
24
Measurement System
Metric
Drill Bit Point Type
4 Facet Point
Number of Flutes
2
Thread Direction
Right Hand
Helix Angle - Maximum
25 Degrees

Description

Jobber Length Drill Bit Set, Number of Drill Bits 24, Drill Bit Point Angle 118 Degrees , Material - Machining Carbide, Finish - Machining Bright (Uncoated)
