15pc. 135 Degrees Drill Bit Set

  • Mfr # 401J96
  • Zoro # G3374310
product price:
$
168.99
/ea
Free Shipping & Returns

Key Features

Number of Pieces
15
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
Cobalt
Includes
Metal Drill Index
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
401J96
Zoro #
G3374310
UPC #
-
Country of Origin
United States

Dimensions

Shank Dia.
1/6 in
Drill Bit Dimension Type
Fractional Inch
Drill Bit Size
1/16 in to 1/2 in by 32nds
Sizes Included
1/16", 3/32", 1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 13/32", 7/16", 15/32", 1/2"
Depth x Dia. Ratio
4xD
Largest Drill Bit Size
1/2 in
Drill Bit Sizes Included
1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 13/32 in, 15/32 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 7/16 in, 7/32 in
Drill Length Class
Jobber-Length
Smallest Drill Bit Size
1/16 in
Depth:Dia. Ratio
4xD
Overall Length
1 7/8 in, 2 1/4 in, 2 3/4 in, 3 1/8 in, 3 1/2 in, 3 3/4 in, 4 in, 4 1/4 in, 4 1/2 in, 4 3/4 in, 5 in, 5 1/4 in, 5 1/2 in, 5 3/4 in, 6 in
Wire Rope Length
1 7/8 in, 2 1/4 in, 2 3/4 in, 3 1/8 in, 3 1/2 in, 3 3/4 in, 4 in, 4 1/4 in, 4 1/2 in, 4 3/4 in, 5 in, 5 1/4 in, 5 1/2 in, 5 3/4 in, 6 in
Length
1 7/8 in, 2 1/4 in, 2 3/4 in, 3 1/8 in, 3 1/2 in, 3 3/4 in, 4 in, 4 1/4 in, 4 1/2 in, 4 3/4 in, 5 in, 5 1/4 in, 5 1/2 in, 5 3/4 in, 6 in

Details

Item
Jobber Length Drill Bit Set
Number of Pieces
15
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
Cobalt
Includes
Metal Drill Index
Drill Bit Grouping
Drill Bit Set
Standards
ASME
Point Type
Split Point
Measurement System
Fractional Inch
Primary Material Application
Aluminum, Cast Iron, Hardened Steel, Stainless Steel, Steel, Titanium
Shank Type - Machining
Straight
Coolant Fed
Non-Coolant Through
Number of Drill Bits
15
Finish - Machining
Straw/Bronze
Aircraft Drill
No
Drill Bit Point Type
Split Point
Material - Machining
Cobalt
Drill Bit Case Type
Metal Index
Flute Type
Spiral
Spiral Direction
Right Hand
Number of Flutes
2
Primary Material Application ISO Code
H, K, M, N, P, S
Material Grade - Machining
Heavy Duty
Helix Angle - Maximum
34 Degrees
Helix Angle - Minimum
21 Degrees

Description

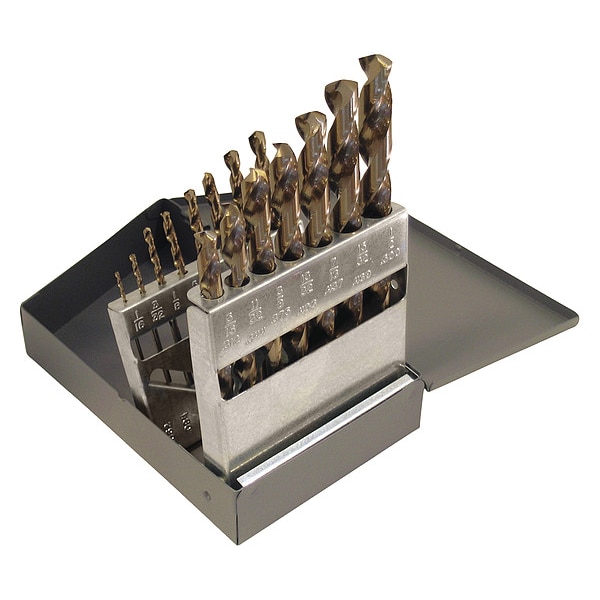

The ZORO SELECT - 401J96 is a jobber-length drill bit set composed of 15 cobalt drill bits ranging in size from 1/16 inch to 1/2 inch. The bits include split point tips and are compatible with the following material types: aluminum, cast iron, hardened steel, stainless steel, steel, and titanium. The set includes a metal drill index case for organized storage and uses fractional inch measurements with a right-hand spiral flute design.

Key Features:

  • Contains 15 pieces with sizes from 1/16" to 1/2".
  • Cobalt drill bits.
  • Drill bit length varies between 1 7/8" and 6".
  • Features two flutes with a spiral helix angle between 21° and 34°.
  • Split point tip with a 135° point angle for general-purpose drilling.
  • Straight shank with a diameter of 1/6".
  • Complies with ASME standards.
  • Identified for machining ISO material groups: H, K, M, N, P, S.
  • Includes a metal index case for organization and storage.
