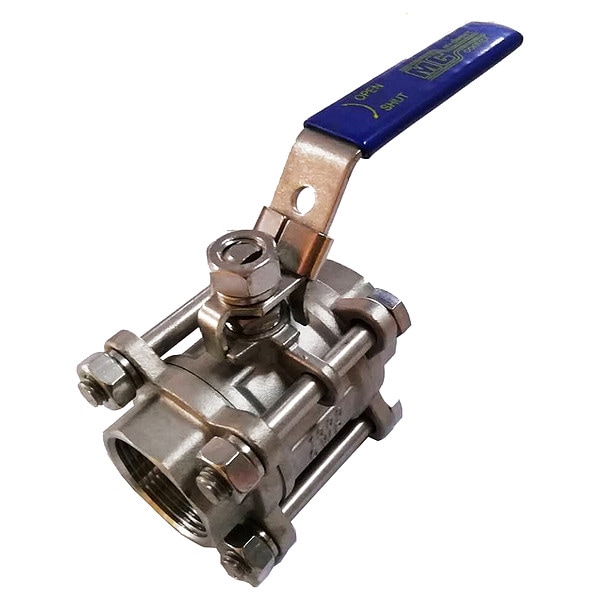

3" FNPT Stainless Steel Ball Valve Inline

original price: $516.60
18% off
new price: $419.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Material 316 Stainless Steel
  • Body Style Inline
  • Max. Pressure 600 psi CWP
  • Temp. Range 0 Degrees to 400 Degrees F
  • Stem Type Self-Adjusting
See all product information

Product Information

Dimensions

Pipe Size 3 in
Overall Length 7.87 in
Nominal Valve Size 3 in
Connection Size - Side 2 3 in
Connection Size - Side 1 3 in

Details

Body Material 316 Stainless Steel
Body Style Inline
Max. Pressure 600 psi CWP
Temp. Range 0 Degrees to 400 Degrees F
Stem Type Self-Adjusting
Valve Structure 3-Piece
Item Manual Two-Way Ball Valve
Body Seal Material PTFE
Handle Type Lever
Handle Material 304 Stainless Steel
Max. Steam Pressure 150 psi WSP
Ball Valve Basic Body Material Stainless Steel
Seat Material RPTFE
Ball Valve Product Group Manual
Ball Material 316 Stainless Steel
Connection Type FNPT x FNPT
Standards ASTM A351-CF8M
Port Full
Stem Material 316 Stainless Steel
Seal Material FKM
Type Three Piece
Connection FNPT
Material of Construction 316 Stainless Steel
Sub-Category Steel Ball Valves
Color - Valve Handle Blue
Vacuum Service Rating 29.9 in Hg
Maximum Pressure - Operating 600 psi
For Media Air, Steam, Water
Operating Temperature - Maximum 400 Degrees F
Operating Temperature - Minimum 0 Degrees F
Valve Ways 2-Way
Maximum Pressure - Steam 150 psi
Connection Gender - Side 2 Female
Coefficient of Volume (Cv) 445.44
Valve Body Style Straight
Valve Construction Three-Piece
Connection Type - Side 1 NPT
Connection Type - Side 2 NPT
Connection Gender - Side 1 Female
Ball Port Style Full Port
3-A Standard Compliance Not Rated
Maximum Pressure - Combustible Gas Not Rated
Handle - Locking Locking
Vented Ball Valve Non-Vented

Description

Manual Two-Way Ball Valve, Body Material 316 Stainless Steel, For Media Air, Steam, Water, Valve Construction Three-Piece, Nominal Valve Size 3 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29.9 in Hg, Ball Material 316 Stainless Steel, Ball Port Style Full Port, Handle - Locking Locking
