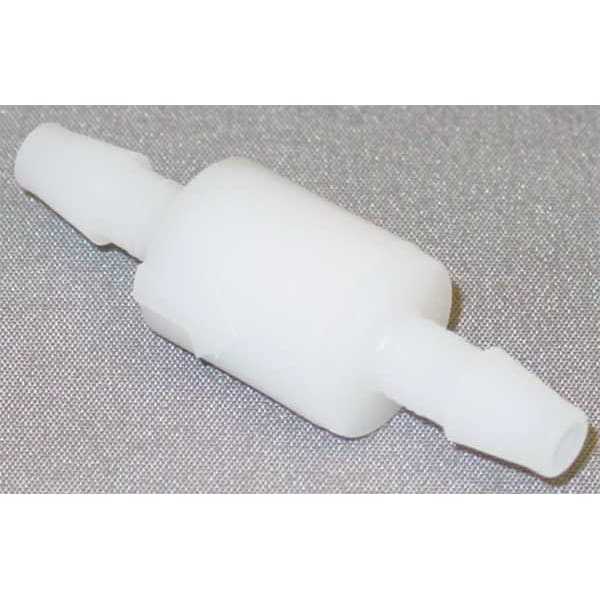

3/16" Barb Polypropylene Ball Cone Spring Check Valve
Mfr # PP CHK 695-3B3B-B
Zoro # G1229751
product price:Â
$
6.79
/ea
Key Features
Pipe Size
3/16"
Connection Type
Barb x Barb
Connection
Barb
Body Material
Polypropylene
Item - Check Valves
Check Valve
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PP CHK 695-3B3B-B
- Zoro #
- G1229751
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Pipe Size
- 3/16"
- Size
- 3/16"
- Length
- 1 23/32 in
- Pipe or Tube Size - Check Valves
- 3/16 in
- Width
- 1/2 in
- Overall Height
- 1/2 in
- Overall Length
- 1.72 in
- Pipe or Tube Size
- 3/16 in
- Connection Size - Side 2
- 3/16 in
- Connection Size - Side 1
- 3/16 in
- Height - Cap to Inlet Center
- 2 15/16 in
- Nominal Valve Size
- 3/16 in
- Wire Rope Length
- 1.72 in
Description
ZORO SELECT Series 695 ball cone spring check valve with an inline, single-flow design for air and fluid applications compatible with the listed materials, pressure rating, and temperature range. It uses a spring-loaded ball check mechanism for one-direction flow control. The polypropylene body has barb x barb connections for 3/16 in pipe or tube size and may be mounted horizontally or vertically.
Key Features:
- Valve type: Ball cone spring check valve with inline body design
- Connection size: 3/16 in on both sides
- Connection type: Barb x Barb
- Body material: Polypropylene
- Check mechanism: Ball with stainless steel mechanism and spring
- Seal material: Buna-N
- Seat material: Polypropylene
- Cracking pressure: 1 psi
- Flow coefficient (Cv): 0.2
- Maximum operating pressure: 125 psi
- Operating temperature range: -20 degrees F to 140 degrees F
- Mounting orientation: Horizontal, Vertical
- Full flow: Manufacturer listed as Yes
- Overall length: 1.72 in
