  11. 3/4" FNPT Brass Ball Valve with Drain Inline
Shop All Ball Valves
Zoro Select

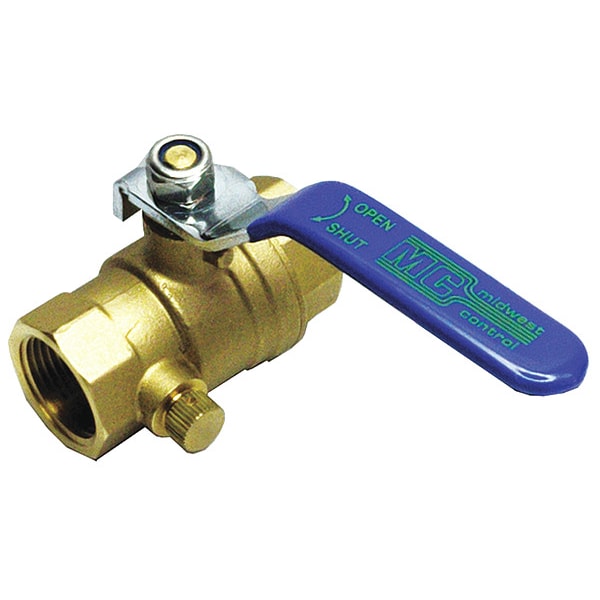

3/4" FNPT Brass Ball Valve with Drain Inline

original price: $21.57
20% off
new price: $17.15
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Material Brass
  • Body Style Inline
  • Stem Type Blowout Proof
  • Stem Material Brass
  • Valve Structure 2-Piece
See all product information

Product Information

Dimensions

Pipe Size 3/4"
Overall Length 2.3 in
Handle Height 2.36 in
Nominal Valve Size 3/4 in
Connection Size - Side 1 3/4 in
Handle Length 3.86 in
Connection Size - Side 2 3/4 in

Details

Body Material Brass
Body Style Inline
Stem Type Blowout Proof
Item Ball Valve with Drain
Stem Material Brass
Valve Structure 2-Piece
Handle Material Steel with Vinyl Grip
Port Full
Ball Material Chrome Plated Brass
Seat Material PTFE
Max. Pressure 600 psi CWP
Connection Type FNPT x FNPT
Ball Valve Basic Body Material Brass
Ball Valve Product Group Manual
Handle Type Lever
Temp. Range -40 Degrees to 350 Degrees F
Seal Material PTFE
Connection FNPT
Type Two Piece
Sub-Category Brass Ball Valves
Material of Construction Forged Brass
Ball Port Style Full Port
Color - Valve Handle Blue
Vented Ball Valve Non-Vented
Connection Gender - Side 1 Female
Cleaned and Bagged Not Cleaned and Bagged
Maximum Pressure - Steam 150 psi
Manufacturer Warranty 3 yr
Valve Ways 2-Way
Coefficient of Volume (Cv) 29.76
For Media Air, Oil, Steam, Water
Connection Gender - Side 2 Female
Valve Body Style Straight
Handle - Locking Non-Locking
Connection Type - Side 2 NPT
Connection Type - Side 1 NPT
Color - Valve Body Brass
3-A Standard Compliance Not Rated
Valve Construction Two-Piece
Maximum Pressure - Operating 600 psi
Operating Temperature - Maximum 350 Degrees F
Vacuum Service Rating 29.9 in Hg
Operating Temperature - Minimum -40 Degrees F

Description

Manual Two-Way Ball Valve, Body Material Brass, For Media Air, Oil, Steam, Water, Valve Construction Two-Piece, Nominal Valve Size 3/4 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Applicable, Vacuum Service Rating 29.9 in Hg, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle - Locking Non-Locking

Restrictions

  • WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
