  11. 3/4" FNPT x MNPT Chrome Brass Ball Valve Inline
Zoro Select 3/4" FNPT x MNPT Chrome Brass Ball Valve Inline G-MPC-75 - main

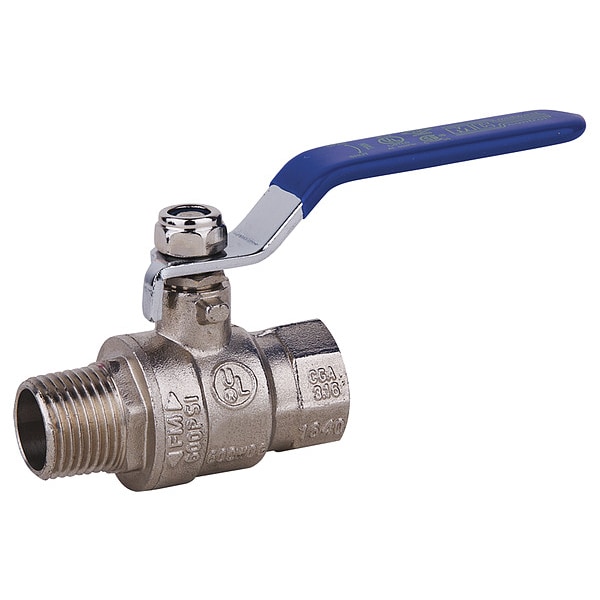

3/4" FNPT x MNPT Chrome Brass Ball Valve Inline

  • Mfr # G-MPC-75

  • Zoro # G1966334

product price: $21.55
/ea

Key Features

Ball Material
Chrome Plated Brass
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
G-MPC-75
Zoro #
G1966334
UPC #
00190735410141
Country of Origin
China

Dimensions

Pipe Size
3/4 in
Overall Length
3 in
Connection Size - Side 2
3/4 in
Connection Size - Side 1
3/4 in
Nominal Valve Size
3/4 in

Details

Ball Material
Chrome Plated Brass
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Air, Steam, Water
Connection Type
FNPT x MNPT
Item
Ball Valve
Ball Valve Product Group
Manual
Handle Material
Chrome-Plated Steel with Vinyl Grip
Stem Material
Brass
Seat Material
PTFE
Handle Type
Lever
Max. Pressure
900 PSI CWP
Temp. Range
-40 Degrees to 400 Degrees F
Body Material
Brass
Standards
CSA, FM, UL Listed
Stem Type
Blowout Proof
Seal Material
PTFE
Type
Two Piece
Operating Temperature - Maximum
400 Degrees F
3-A Standard Compliance
Not Rated
Connection Type - Side 2
NPT
Handle - Locking
Non-Locking
Maximum Pressure - Steam
150 PSI WSP
Connection Gender - Side 2
Female
Connection Gender - Side 1
Male
Maximum Pressure - Combustible Gas
Not Rated
Coefficient of Volume (Cv)
29.76
Vacuum Service Rating
29 in Hg
Color - Valve Handle
Blue
Operating Temperature - Minimum
-40 Degrees F
Connection Type - Side 1
NPT
Vented Ball Valve
Non-Vented

Description

Manual Two-Way Ball Valve, Body Material Nickel-Plated Brass, For Media Air, Steam, Water, Valve Construction Two-Piece, Nominal Valve Size 3/4 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 900 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle - Locking Non-Locking

Restrictions

WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
