  11. 3/8" FNPT Brass Ball Valve Inline
Zoro Select 3/8" FNPT Brass Ball Valve Inline 1PZA9 - main

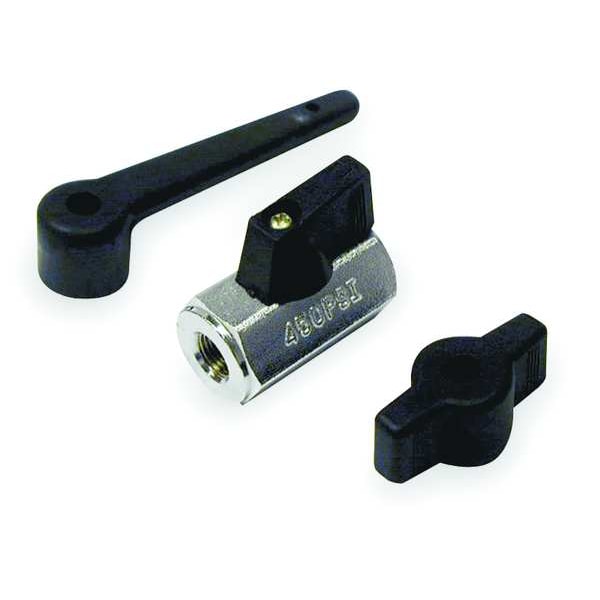

3/8" FNPT Brass Ball Valve Inline

  • Mfr # 1PZA9

  • Zoro # G2152157

product price: $10.49
/ea

Key Features

Ball Material
Chrome Plated Brass
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
One-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1PZA9
Zoro #
G2152157
UPC #
190735410462
Country of Origin
China

Dimensions

Pipe Size
3/8 in
Overall Length
1.73 in
Handle Length
2.9 in
Handle Height
1.22 in
Connection Size - Side 1
3/8 in
Connection Size - Side 2
3/8 in
Nominal Valve Size
3/8 in

Details

Ball Material
Chrome Plated Brass
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
One-Piece
For Media
Air, Oil, Steam, Water
Connection Type
FNPT x FNPT
Item
Ball Valve
Max. Pressure
450 PSI CWP
Handle Type
Lever/Tee/Wedge
Temp. Range
-40 Degrees to 350 Degrees F
Handle Material
Nylon
Stem Type
Blowout Proof
Seat Material
PTFE
Body Material
Brass
Stem Material
Brass
Ball Valve Product Group
Manual
Seal Material
PTFE
Type
One Piece
Color - Valve Body
Brass
Cleaned and Bagged
Not Cleaned and Bagged
Operating Temperature - Maximum
350 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Connection Type - Side 2
NPT
Connection Gender - Side 2
Female
3-A Standard Compliance
Not Rated
Color - Valve Handle
Black
Maximum Pressure - Steam
150 PSI
Connection Gender - Side 1
Female
Vented Ball Valve
Non-Vented
Handle - Locking
Non-Locking
Coefficient of Volume (Cv)
8.23
Vacuum Service Rating
29.9 in Hg
Connection Type - Side 1
NPT

Description

Manual Two-Way Ball Valve, Body Material Brass, For Media Air, Oil, Steam, Water, Valve Construction One-Piece, Nominal Valve Size 3/8 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 450 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Applicable, Vacuum Service Rating 29.9 in Hg, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle - Locking Non-Locking

Restrictions

WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
