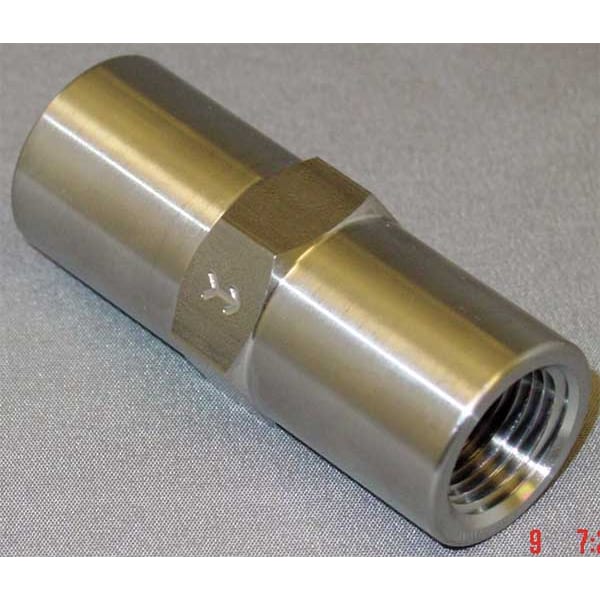

3/8" FNPT Stainless Steel Piston Spring Check Valve
Mfr # CHK SST 615-6F6F-B
Zoro # G2609695
product price:Â
$
72.29
/ea
Key Features
Pipe Size
3/8"
Hex Size
7/8 in
Connection Type
FNPT
Connection
FNPT
Body Material
Stainless Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CHK SST 615-6F6F-B
- Zoro #
- G2609695
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Pipe Size
- 3/8"
- Hex Size
- 7/8 in
- Width
- 7/8 in
- Length
- 2 1/4 in
- Pipe or Tube Size - Check Valves
- 3/8 in
- Overall Height
- 7/8 in
- Size
- 3/8"
- Overall Length
- 2.25 in
- Pipe or Tube Size
- 3/8 in
- Height - Cap to Inlet Center
- 4 5/8 in
- Connection Size - Side 2
- 3/8 in
- Connection Size - Side 1
- 3/8 in
- Nominal Valve Size
- 3/8 in
- Wire Rope Length
- 2.25 in
Description
ZORO SELECT 615 series check valve is an inline piston spring check valve for general-purpose air and fluid service. It uses a spring-loaded stainless steel piston check mechanism for one-way flow applications. This 3/8 in. valve has FNPT x FNPT female threaded connections, a stainless steel body, and a 1 psi cracking pressure for use in horizontal or vertical installations where backflow control is required.
Key Features:
- Valve type: Inline piston spring check valve with single-flow configuration
- Body and internal materials: Stainless steel body, stainless steel check mechanism, stainless steel seat, and stainless steel spring
- Connection size and type: 3/8 in. FNPT x FNPT with female threaded connections on both ends
- Pressure rating: 500 psi maximum operating pressure
- Temperature range: -20 degrees F minimum operating temperature; 180 degrees F maximum operating temperature
- Seal material: Buna-N
- Flow capacity: Cv 2.2
- Mounting orientation: Horizontal or vertical
- Dimensions: 2 1/4 in. overall length, 7/8 in. overall height, 7/8 in. overall width, 7/8 in. hex size
- Standards: UL, UR
