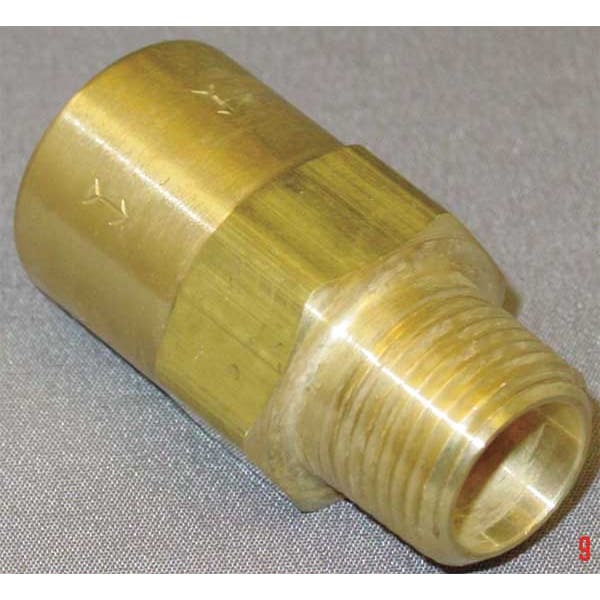

3/8" FNPT x MNPT Brass Piston Spring Check Valve

  • Mfr # CHK BRS 610-6F6M-B
  • Zoro # G1786845
product price:
$
24.99
/ea

Key Features

Pipe Size
3/8"
Hex Size
7/8 in
Connection Type
FNPT x MNPT
Connection
FNPT x MNPT
Body Material
Brass
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CHK BRS 610-6F6M-B
Zoro #
G1786845
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size
3/8"
Hex Size
7/8 in
Length
1.94"
Width
0.88"
Pipe or Tube Size - Check Valves
3/8"
Size
3/8"
Overall Height
7/8"
Overall Length
1.69 in
Pipe or Tube Size
3/8 in
Height - Cap to Inlet Center
2 15/16 in
Nominal Valve Size
3/8 in
Connection Size - Side 2
3/8 in
Connection Size - Side 1
3/8 in
Wire Rope Length
1.69 in

Details

Connection Type
FNPT x MNPT
Connection
FNPT x MNPT
Body Material
Brass
Min. Temp. - Valves
-20 Degrees F
Flow Design
Single
Max. Water Pressure
500 psi
Spring Material - Check Valves
Stainless Steel
Seat Material - Check Valves
Brass
Max. Water Pressure - Valves
500 psi
Seat Material
Brass
Spring Material
Stainless Steel
Sub-Category
Brass
Max. Steam Pressure - Valves
Not Rated
Connection Type - Check Valves
MNPT x FNPT
Cap to Inlet Center
2-29/32"
Max. Temp.
250 Degrees F
Full Flow - Valves
Yes
Max. Temp. - Valves
180 Degrees F
Seal Material - Check Valves
Buna-N
Mechanism and Body Design
Inline Piston
Mounting Orientation - Check Valves
Horizontal, Vertical
Mounting Position
Vertical or Horizontal
Seal Material
Buna-N
Max. Pressure
500 psi
Item
Piston Spring Check Valve
Material of Construction
Brass
Application - Valves
General Purpose
Item - Check Valves
Check Valve
Body Material - Valves
Brass
Cracking Pressure - Check Valves
1.000 psi
Cracking Pressure
1 psi
Mounting Orientation
Horizontal, Vertical
Seal
Buna
Type
Piston Design
Maximum Pressure - Operating
500 psi
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
180 Degrees F
Check Mechanism Material
Brass
Connection Gender - Side 1
Female
Silent Check
Standard
Connection Type - Side 2
NPT
3-A Standard Compliance
Not Rated
Connection Type - Side 1
NPT
For Media
Air, Fluids
Maximum Pressure - Steam
Not Rated
Connection Gender - Side 2
Male
Coefficient of Volume (Cv)
1.4
Check Mechanism
Piston
Vacuum Service Rating
Not Rated
Valve Body Style
Inline
Valve Series
610

Description

ZORO SELECT Series 610 check valve is an inline piston spring check valve for general-purpose air and fluid service. It uses a spring-loaded piston for one-way flow applications and reverse-flow restriction. This brass valve features a 3/8 in. FNPT x MNPT threaded connection, a Cv of 1.4, and can be mounted horizontally or vertically.

Key Features:

  • Piston spring check mechanism: Inline piston design with a single flow path.
  • Body and internal materials: Brass body, brass check mechanism, brass seat, stainless steel spring, and Buna-N seal.
  • Connection size and type: 3/8 in. FNPT x MNPT with NPT threads; side 1 female, side 2 male.
  • Pressure rating: 500 psi maximum operating and water pressure.
  • Cracking pressure: 1 psi.
  • Temperature range: -20 degrees F minimum operating temperature to 180 degrees F maximum operating temperature.
  • Flow characteristics: Cv of 1.4.
  • Mounting orientation: Horizontal or vertical.
  • Dimensions: 1.69 in. overall length, 7/8 in. overall height, and 7/8 in. hex size.
