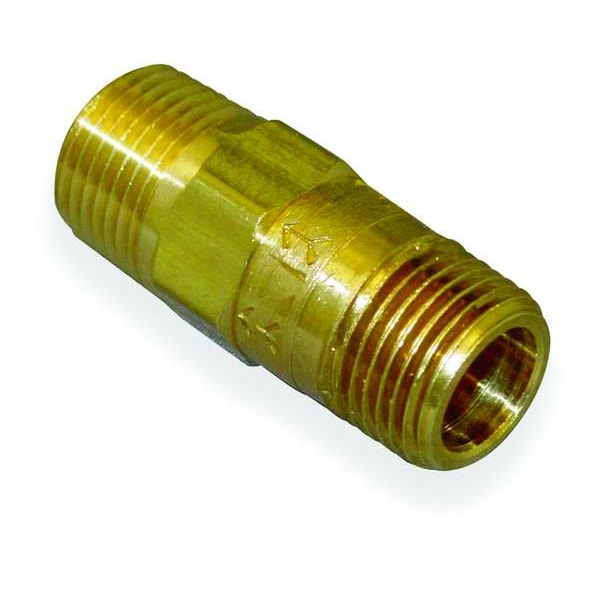

3/8" MNPT Brass Piston Spring Check Valve

  • Mfr # CHK BRS 610-6M6M-B

  • Zoro # G1031432

product price:
$
24.29
/ea

Key Features

Pipe Size
3/8"
Hex Size
11/16 in
Connection Type
MNPT
Connection
MNPT
Body Material
Brass
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CHK BRS 610-6M6M-B
Zoro #
G1031432
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size
3/8"
Hex Size
11/16 in
Size
3/8"
Length
1 11/16 in
Width
11/16 in
Pipe or Tube Size - Check Valves
3/8 in
Overall Height
11/16 in
Overall Length
1.69 in
Pipe or Tube Size
3/8 in
Connection Size - Side 2
3/8 in
Height - Cap to Inlet Center
2 5/16 in
Connection Size - Side 1
3/8 in
Nominal Valve Size
3/8 in
Wire Rope Length
1.69 in

Details

Connection Type
MNPT
Connection
MNPT
Body Material
Brass
Max. Water Pressure - Valves
500 psi
Seat Material - Check Valves
Brass
Seat Material
Brass
Mounting Position
Vertical or Horizontal
Item
Piston Spring Check Valve
Spring Material - Check Valves
Stainless Steel
Material of Construction
Brass
Body Material - Valves
Brass
Max. Pressure
500 psi
Cap to Inlet Center
2 5/16 in
Sub-Category
Brass
Seal Material
Buna-N
Seal Material - Check Valves
Buna-N
Cracking Pressure
1 psi
Mechanism and Body Design
Inline Piston
Max. Water Pressure
500 psi
Application - Valves
General Purpose
Max. Temp. - Valves
180 Degrees F
Item - Check Valves
Check Valve
Mounting Orientation - Check Valves
Horizontal, Vertical
Cracking Pressure - Check Valves
1.0 psi
Min. Temp. - Valves
-20 Degrees F
Max. Steam Pressure - Valves
Not Rated
Flow Design
Single
Full Flow - Valves
Yes
Connection Type - Check Valves
MNPT x MNPT
Max. Temp.
180 Degrees F
Mounting Orientation
Horizontal, Vertical
Seal
Buna
Type
Piston Design
Valve Body Style
Inline
Connection Gender - Side 1
Male
3-A Standard Compliance
Not Rated
Check Mechanism Material
Brass
Check Mechanism
Piston
Connection Type - Side 2
NPT
Connection Type - Side 1
NPT
Coefficient of Volume (Cv)
1.4
Maximum Pressure - Operating
500 psi
Operating Temperature - Minimum
-20 Degrees F
Silent Check
Standard
Maximum Pressure - Steam
Not Rated
Operating Temperature - Maximum
180 Degrees F
Vacuum Service Rating
Not Rated
Connection Gender - Side 2
Male
For Media
Air, Fluids
Valve Series
610

Description

Zoro Select 610 Series 3/8 in. piston spring check valve is an inline check valve with a brass body and brass piston mechanism. It uses a spring-loaded piston mechanism for one-direction flow applications in air and fluid piping systems. This valve features 3/8 in. MNPT x MNPT connections, a 1 psi cracking pressure, and horizontal or vertical mounting.

Key Features:

  • Valve type: Piston spring check valve with inline piston mechanism and single-flow design
  • Body and internal materials: Brass body, brass seat, brass check mechanism, stainless steel spring, and Buna-N seal
  • Connections: 3/8 in. male NPT x male NPT
  • Pressure rating: 500 psi maximum operating and water pressure
  • Temperature range: -20 Degrees F to 180 Degrees F
  • Flow characteristics: 1.4 Cv and 1 psi cracking pressure
  • Media: Air and fluids
  • Mounting orientation: Horizontal or vertical
  • Dimensions: 1 11/16 in. length, 11/16 in. overall height and width, 11/16 in. hex size
