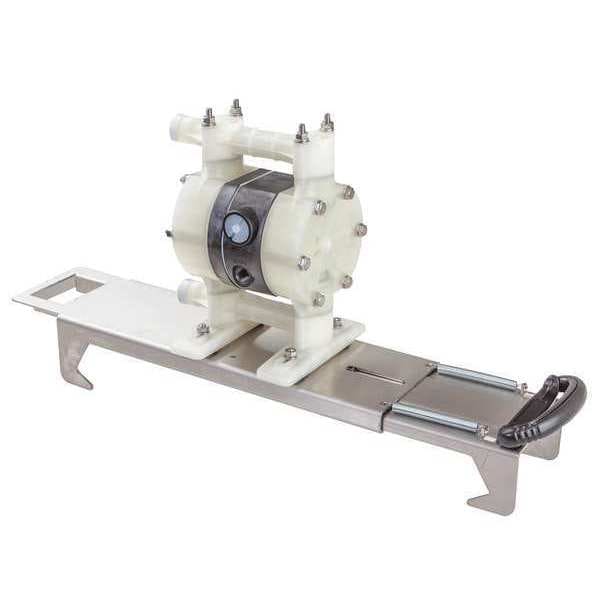

Air Operated Drum Pump, with Drum Bracket

  • Mfr # DIASYS-DRUM

  • Zoro # G7343631

product price:  $1,482.99
/ea
Free Shipping & Returns

Key Features

For Media Type
Ammonia, Antifreeze, Brake Fluid, Diesel Fuel, Ethanol, Ethylene Glycol, Fertilizers, Fungicides, Glycerin, Herbicides, Hydraulic Oil, Isopropanol, Methanol, Pesticides, Sodium Bicarbonate, Windshield Washer Fluid
For Container Size
15 gal, 30 gal, 55 gal
Max. Flow Rate
13 gpm
Max. Viscosity
500 cps
Diesel Exhaust Fluid Compatible
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DIASYS-DRUM
Zoro #
G7343631
UPC #
791885905558
Country of Origin
India

Dimensions

For Container Size
15 gal, 30 gal, 55 gal
Discharge Tube Length
5 ft.
Adapter Dia.
2"
Hose Length
59 in
Air Inlet Size
3/8 in FNPT
Suction Tube Length
114 in
Discharge Size FPT (In.)
1/2
Manufacturers Warranty Length
1 yr.
Inlet Size
1/2"
Overall Length
41 1/2 in
Air Outlet Size
3/8 in
Hose Outside Dia.
3/4 in
Height Above Container
9 in
Bung Connection Dia.
2 in
Overall Height
41-1/2 in
Overall Width
23 in
Adapter Connection Diameter
2 in
Hose Outside Diameter
3/4 in
Air Inlet Connection Size
3/8 in
Hose Inside Diameter
1/2 in

Details

Item
Air Drum Pump
For Media Type
Ammonia, Antifreeze, Brake Fluid, Diesel Fuel, Ethanol, Ethylene Glycol, Fertilizers, Fungicides, Glycerin, Herbicides, Hydraulic Oil, Isopropanol, Methanol, Pesticides, Sodium Bicarbonate, Windshield Washer Fluid
Max. Flow Rate
13 gpm
Max. Viscosity
500 cps
Diesel Exhaust Fluid Compatible
Yes
Wetted Materials
Buna-N, Polypropylene, Stainless Steel, Tefzel
Includes Suction Tube
Yes
For Use With
55 gal Drums, IBC
Discharge Tube Outlet ID
1/2 in
Hose Tube Material
Buna-N
Discharge Tube Outlet OD
3/4 in
Includes
Diaphragm
Max. Air Inlet (PSI)
100
Adapter Material
Polyethylene
Piston Material
Buna-N
Adapter Type
Bung
Discharge Tubing Material
Buna-N
Suction Tube Material
Polyethylene
Max. Flow GPM
13 gpm
Self-Priming
Yes
Metered
No
Features
High Suction Lift
Agency Compliance
EX
Seal Material
Buna-N
Suction Tube ID
7/16 in
Suction Tube OD
1/2 in
Includes Nozzle
Yes
Nozzle Operation
Manual
Noise Level
70 dB
Max. Air Pressure
140 psi
Includes Bung Adapter
Yes
Pump Connection OD
3/4 in
Food Grade
No
Power Source
Air
Includes Spout
No
Housing Material - Pumps
Aluminum
Max. Fluid Temp.
130 Degrees F
Variable Speed
No
Runs Dry
Yes
Max. Head Pressure
10 psi
Includes Discharge Hose
Yes
Min. Air Pressure
20 psi
Nozzle Material
Polypropylene
Pump Connection ID
1/2 in
Compatible Chemicals
Ammonia (Liquids), Antifreeze (Coolant), Brake Fluid, Diesel Fuel, Ethyl (Ethanol), Ethylene Glycol, Fertilizers, Fungicides, Glycerin, Herbicides, Hydraulic Oils (Synthetic), Isopropyl (Isopropanol), Methyl (Methanol), Pesticides, Sodium Bicarbonate (10%), Windshield Washer Fluid
Not Recommended Chemicals
Hydrochloric Acid 100%, Hydrofluoric Acid 100%, Hydrofluoric Acid 75%, Sulfuric Acid 10% to 75%, Sulfuric Acid 75% to 100%
Pump Connection Type
FNPT
Duty Cycle
Continuous
Max. Oil Flow
13 gpm
Discharge Connection Type
Hose Barb
For Container Type
Drum
Gear Lube
NT
Adapter Connection Type
MNPT
Max. Head - Pumps
20 ft
Explosion Proof
Yes
Pump Ratio
1:1
Min. Operating Temp.
45 Degrees F
Adapter Connection Standard
MNPT
Maximum Outlet Pressure
100 psi
Mounting Bracket Included
Drum Mounting Bracket
Maximum Flow Rate
13 gpm
Minimum Air Pressure
20 psi
Pump Technology
Diaphragm
Meter Type Included
No Meter Included
Wetted Material
Buna-N/PP/Stainless Steel/Tefzel
Maximum Oil Flow
13 gpm
Motor Enclosure Design
Totally Enclosed Fan Cooled
Static Protection
Not Groundable
Maximum Head
20 ft
Hose Cover Material
Buna-N
Standards
EX
Air Inlet Connection Type
FNPT
Minimum Fluid Temperature
45 Degrees F
Chemical Compatibility
Ammonia Liquid, Antifreeze Coolant, Brake Fluid, Diesel Fuel, Ethanol, Ethylene Glycol, Fertilizers, Fungicides, Glycerin, Herbicides, Isopropanol, Methanol, Pesticides, Sodium Bicarbonate 10%, Synthetic Oil, Windshield Washer Fluid
Maximum Fluid Temperature
120 Degrees F
Pressure Ratio
1:1
Housing Material
Polypropylene
Maximum Viscosity
500 cps
Hazardous Location Class
Not Rated
Includes Follower Plate
No Follower Plate Included
Container Cover Type Included
No Cover Included
Maximum Air Pressure
140 psi
Air Consumption
12 cfm
Maximum Head Pressure
10 psi

Description

Air Drum Pump, Max. Air Pressure 140 psi, Spout Connection Size Not Applicable, Suction Tube Material Polyethylene, Self-Priming Yes, Overall Length 41 1/2 in, Explosion Proof Yes, Discharge Connection Type Hose Barb, Features High Suction Lift, Spout Length Not Applicable, Food Grade No, Thermal Protection Not Applicable, Air Outlet Size 3/8 in, Bung Connection Dia. 2 in, Air Consumption 12 cfm, Hose Length 59 in, Variable Speed No, Includes Discharge Hose Yes, Noise Level 70 dB

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
