Zoro Select Altitude Pressure Gauge, 0 to 35 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location 18C808 - main
Shop ZORO SELECT

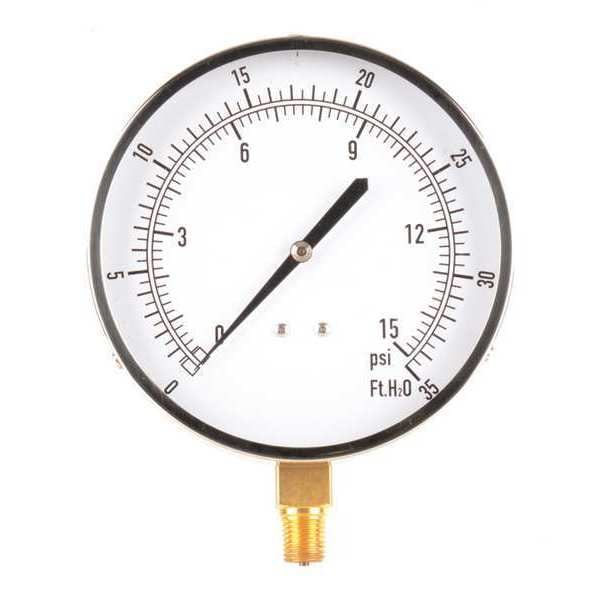

Altitude Pressure Gauge, 0 to 35 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 18C808

  • Zoro # G4739752

product price:  $26.89
/ea

Key Features

Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
18C808
Zoro #
G4739752
UPC #
190735393918
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 1/2 in
Nominal Dial Size
4 1/2 in

Details

Item
Altitude Pressure Gauge
Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Non-Corrosive, Non-Explosive Gas
Gauge Case Material
Stainless Steel
Series
Y120SS
Lens Material
Plastic
Primary Pressure Range
0 to 35
Primary Scale Units
ft wc
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Calibration Certificate Included
No
For Use With
Non-Explosive Gas Or Liquid That Do Not Crystalize And Corrode Copper Alloy
Case Color
Silver
Gauge Secondary Range Values
0 to 35
Gauge Application
Altitude
Gauge Primary Range Smallest Graduation
0.2
Smallest Graduation
0.2 psi
Socket Material
Copper
Case Material
Stainless Steel
Wetted Materials
Copper
Connection Type
MNPT
Adjustable Pointer
No
Secondary Scale Units
psi
Pressure Gauge Type
Altitude Gauge
Ambient Operating Temperature Range
-40 Degrees to 140 Degrees F
Process Connection Gender
Male
Process Temperature Range
-40 Degrees to 140 Degrees F
Secondary Pressure Range
0 to 15
Pressure Range Type
Pressure
Accuracy Scale
Full Scale
Sensor Material
Copper
Scale Type
Dual
Reads Head Pressure
No
Freeze Resistant Movement
No
Dial Color
White
Removable Bezel
No
Includes Mounting Hardware
No
Maximum Pressure
15
Operating Temperature Range
-40 Degrees to 140 Degrees F

Description

Altitude Pressure Gauge, Accuracy +/-1.0 Percent, Gauge Case Material Stainless Steel, Nominal Dial Size 4 1/2 in, Lens Material Plastic, IP/NEMA Rating Not Rated, Hazardous Location Rating Not Rated, Sensor Material Copper, Socket Material Copper, Process Connection Type NPT, Process Connection Gender Male, Process Connection Location Bottom, Process Connection Size 1/4 in, Panel-Mountable No, Pressure Gauge Type Altitude Gauge, Process Temperature Range -40 Degrees to 140 Degrees F
