  5. Altitude Pressure Gauge, 0 to 370 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

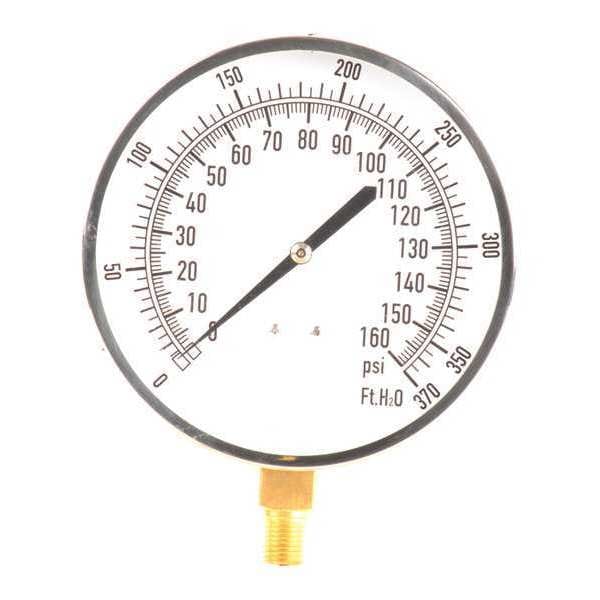

Zoro Select Altitude Pressure Gauge, 0 to 370 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location 18C812 - main

Altitude Pressure Gauge, 0 to 370 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 18C812

  • Zoro # G4739716

product price:  $26.89
/ea

Key Features

Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
18C812
Zoro #
G4739716
UPC #
190735393956
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 1/2 in
Nominal Dial Size
4 1/2 in

Details

Item
Altitude Pressure Gauge
Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Non-Corrosive, Non-Explosive Gas
Gauge Case Material
Stainless Steel
Series
Y120SS
Lens Material
Acrylic
Primary Pressure Range
0 to 370
Primary Scale Units
ft wc
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Secondary Range Values
0 to 370
For Use With
Non-Explosive Gas Or Liquid That Do Not Crystalize And Corrode Copper Alloy
Smallest Graduation
1 psi
Gauge Application
Altitude
Calibration Certificate Included
No
Case Color
Silver
Gauge Primary Range Smallest Graduation
1
Socket Material
Copper
Case Material
Stainless Steel
Wetted Materials
Copper
Connection Type
MNPT
Scale Type
Dual
Sensor Material
Copper
Pressure Gauge Type
Altitude Gauge
Process Connection Gender
Male
Ambient Operating Temperature Range
-40 Degrees to 140 Degrees F
Adjustable Pointer
No
Dial Color
White
Pressure Range Type
Pressure
Accuracy Scale
Full Scale
Freeze Resistant Movement
No
Process Temperature Range
-40 Degrees to 140 Degrees F
Includes Mounting Hardware
No
Secondary Pressure Range
0 to 160
Removable Bezel
No
Secondary Scale Units
psi
Reads Head Pressure
No
Maximum Pressure
160 psi
Operating Temperature Range
-40 Degrees to 140 Degrees F

Description

Altitude Pressure Gauge, Accuracy +/-1.0 Percent, Gauge Case Material Stainless Steel, Nominal Dial Size 4 1/2 in, Lens Material Acrylic, IP/NEMA Rating Not Rated, Hazardous Location Rating Not Rated, Sensor Material Copper, Socket Material Copper, Process Connection Type NPT, Process Connection Gender Male, Process Connection Location Bottom, Process Connection Size 1/4 in, Panel-Mountable No, Pressure Gauge Type Altitude Gauge, Process Temperature Range -40 Degrees to 140 Degrees F
